Whirlpool Dishwasher Not Cleaning Dishes — 5 Circulation Pump Failures & Fixes

You run a full cycle on your Whirlpool dishwasher, open it up expecting sparkling dishes, and instead find food debris still stuck to your plates. The water's draining fine, the machine's making all its usual sounds, but nothing's actually getting clean. Nine times out of ten, you're dealing with a circulation pump that's failing to generate enough pressure to blast water through those spray arms.

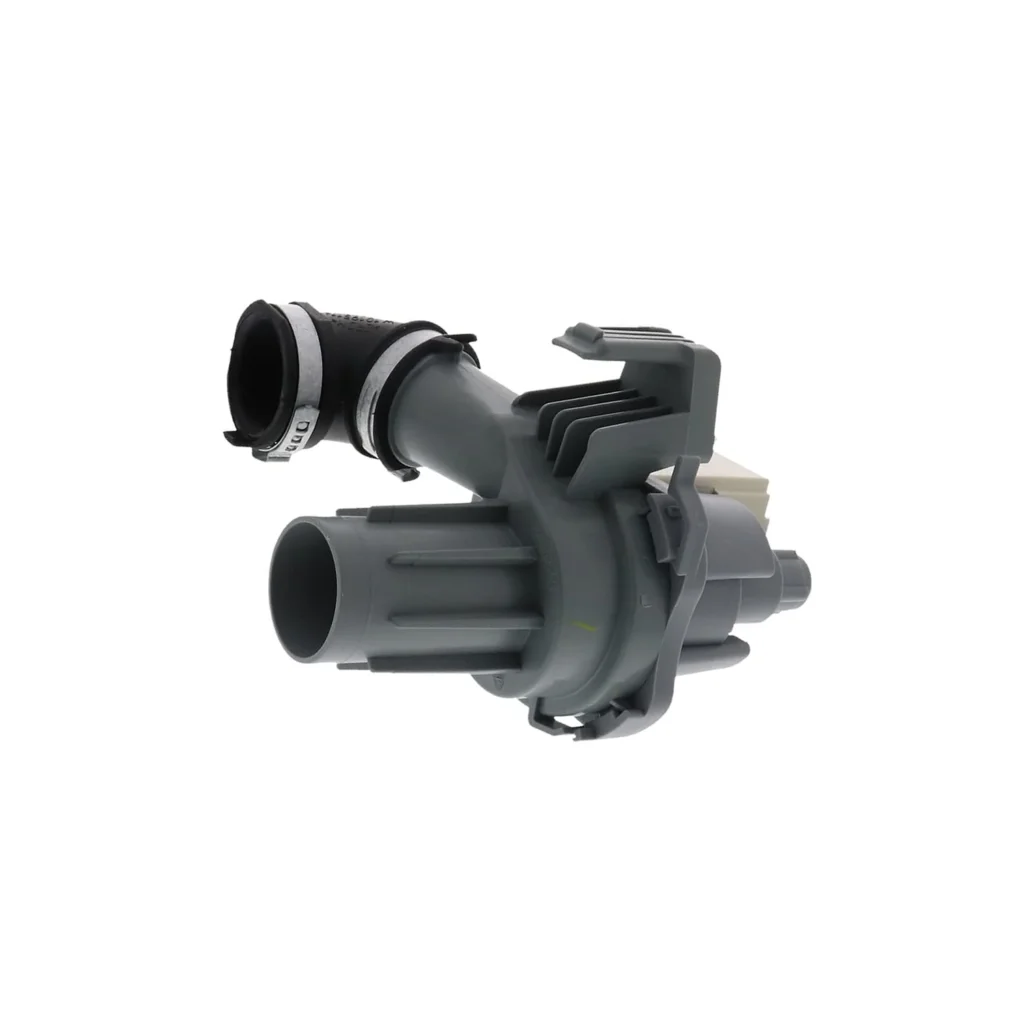

The circulation pump assembly (part W11612326) is the heart of your dishwasher's cleaning system. It pulls water from the sump and forces it through the spray arms at high pressure — typically around 20-30 PSI. When this pump starts failing, you'll notice it immediately in your cleaning results, even if everything else seems normal.

Quick Symptom Check

Your circulation pump is likely failing if you notice:

• Dishes come out dirty or food-spotted — especially on upper rack
• Weak spray arm rotation — spin them manually, they should have resistance
• Unusual grinding or humming during wash cycle
• Water pooling at bottom but not spraying effectively
• Cycle completes normally but cleaning performance is terrible
• Intermittent cleaning issues — works some cycles, fails others

Cause #1: Worn Pump Motor Bearings (Most Common)

Probability: 45% of circulation pump failures

The motor bearings inside the pump assembly wear out over time, especially if you've got hard water. You'll hear a distinctive grinding or squealing noise during the wash cycle, and the pump won't generate full pressure even though it's technically running.

How to diagnose:

1. Run a wash cycle and listen carefully during the main wash phase
2. Open the dishwasher mid-cycle (it'll pause automatically on models like WDF330PAHB2 and WDF520PADM7)
3. Check if spray arms are spinning weakly or not at all
4. Listen for grinding, squealing, or labored motor sounds
5. If motor runs but pressure is weak, bearings are shot

The fix: You can't rebuild this assembly — the W11612326 is a complete sealed unit. Replacement takes about 45 minutes and requires removing the lower spray arm, pump cover, and disconnecting the motor harness. Price ranges from $65-$85 for the OEM part.

Cause #2: Clogged Pump Impeller

Probability: 30% of cases

Before assuming your pump is dead, check for obstructions. Small bones, fruit pits, toothpicks, and even broken glass can jam the impeller. The motor will hum or buzz, but nothing moves.

Diagnosis steps:

1. Pull out lower dish rack completely
2. Remove spray arm (usually just lifts off or unscrews counterclockwise)
3. Take out the filter assembly at the bottom
4. Look down into the pump housing with a flashlight
5. Check for visible debris around impeller blades

The fix: Sometimes you can clear debris and save the pump. Use needle-nose pliers to extract anything caught in the impeller. If the impeller blades are cracked or broken, you need the full W11612326 assembly. This part fits WDF130PAHB1, WDF330PAHW4, WDF540PADM3, and dozens of other Whirlpool, Maytag, and KitchenAid models.

Cause #3: Failed Motor Windings

Probability: 15% of failures

The pump motor itself can burn out, especially after a power surge or if it's been running with bad bearings for too long. You'll get zero sound from the pump, or it'll hum without running.

How to test:

1. Unplug dishwasher or flip breaker
2. Access the pump motor (under the tub)
3. Disconnect wire harness to pump
4. Use multimeter set to resistance (ohms)
5. Test between motor terminals — should read 5-15 ohms
6. Test each terminal to ground — should read infinite (open circuit)
7. If you get zero ohms to ground, windings are shorted

The fix: Replace the entire W11612326 assembly. The motor can't be separated or rebuilt. This is straightforward on models like WDF320PADW3 and WDF520PADW6 — just requires basic hand tools and about an hour of your time.

Cause #4: Cracked Pump Housing

Probability: 7% of cases

Less common but catastrophic when it happens. The plastic pump housing can crack from thermal stress or impact (like dropping a heavy pot into the dishwasher). You'll see water leaking under the dishwasher during operation.

Signs to look for:

• Water pooling under dishwasher after cycles
• Reduced spray pressure even with motor running normally
• Visible cracks in pump housing (requires removing lower panel)
• Hissing sound during wash cycle from escaping water

The fix: Complete pump assembly replacement with W11612326. No way to repair cracked housings — they're under too much pressure during operation.

Cause #5: Worn Impeller Seal

Probability: 3% of failures

The seal between the motor shaft and pump housing can deteriorate, causing internal leakage. The pump loses pressure but still makes normal operating sounds. This one's tricky to diagnose without disassembly.

Diagnostic clues:

• Pump runs normally (sound-wise)
• But cleaning performance steadily declines over weeks
• No visible external leaks
• Spray arms barely rotate even with clear water path

The fix: You guessed it — replace with W11612326. The seal isn't available separately, and even if it was, labor to replace just the seal exceeds the cost of the whole assembly.

When to Call a Pro

This is actually a great DIY repair if you're comfortable with basic tools. The pump is accessible from underneath on most models, and the electrical connections are simple plug-and-play. However, call a professional if:

• You're not comfortable working with your dishwasher unplugged/powered off
• Your model requires removing the dishwasher from the cabinet (some built-ins are tricky)
• You find water damage that suggests bigger issues
• Multiple electrical components seem to be failing simultaneously

Professional installation typically runs $150-$200 in labor plus parts, so you're looking at $220-$285 total. DIY cost is just the $69 part from heima.com.

Parts Compatibility Quick Reference

The W11612326 replaces older part numbers W10879262, W10805386, AP7193729, and W11521435. It's compatible with Whirlpool, Maytag, KitchenAid, Amana, and Kenmore dishwashers including these common models:

• WDF130PAHB1, WDF130PAHW1 (Whirlpool entry-level series)
• WDF330PAHB2, WDF330PAHB4, WDF330PAHS2, WDF330PAHS3, WDF330PAHS5, WDF330PAHW2, WDF330PAHW4 (330 series)
• WDF320PADW3 (320 series)
• WDF520PADM7, WDF520PADM9, WDF520PADW6 (520 series)
• WDF540PADM3 (540 series)

Check your model number (usually on the door edge or inside panel) against the full compatibility list before ordering.

Frequently Asked Questions

How long should a dishwasher circulation pump last?

Typically 7-10 years with normal use. Hard water shortens lifespan significantly — those mineral deposits accelerate bearing wear. If you're replacing a pump in a dishwasher under 5 years old, consider adding a water softener to protect the new pump.

Can I run my dishwasher with a weak circulation pump?

Technically yes, but you're wasting water, detergent, and electricity on cycles that don't actually clean. Plus, a failing pump motor drawing excessive current can eventually damage the control board. Fix it now before it cascades into more expensive problems.

Why does my pump work sometimes but not others?

Classic sign of failing motor bearings or a loose impeller. As the motor heats up during a cycle, thermal expansion can cause intermittent contact issues. Cold starts might work fine, but 10 minutes in, the pump loses pressure. This will get progressively worse until it fails completely.
