LG Washer Won't Start or Spin — 5 Lid Switch Failures & Fixes
You load the washer, add detergent, press start — and nothing happens. Or maybe it fills with water but refuses to agitate or spin. You lift the lid and close it again. Still nothing. If you've got an LG top-loader (WT1001CW, WT1501CW, WT1801HWA, or similar models from 2010-2015), there's a 70% chance you're dealing with a failed lid switch assembly.
The lid switch isn't just a safety feature — it's the gatekeeper for every wash cycle. When it fails, your washer becomes a $600 laundry basket.
Quick Symptom Check
Your LG washer has a lid switch problem if you're experiencing:
- No response when you press Start — control panel lights up but machine won't begin cycle
- Fills but won't agitate — water enters the tub, then everything stops
- Won't spin out clothes — completes wash but leaves soaking wet laundry
- Stops mid-cycle when lid is closed — washer acts like the lid is open even when it's latched
- Error codes appearing: LE, dE, or door error messages on digital display models
Cause #1: Failed Lid Switch Assembly (70% of Cases)

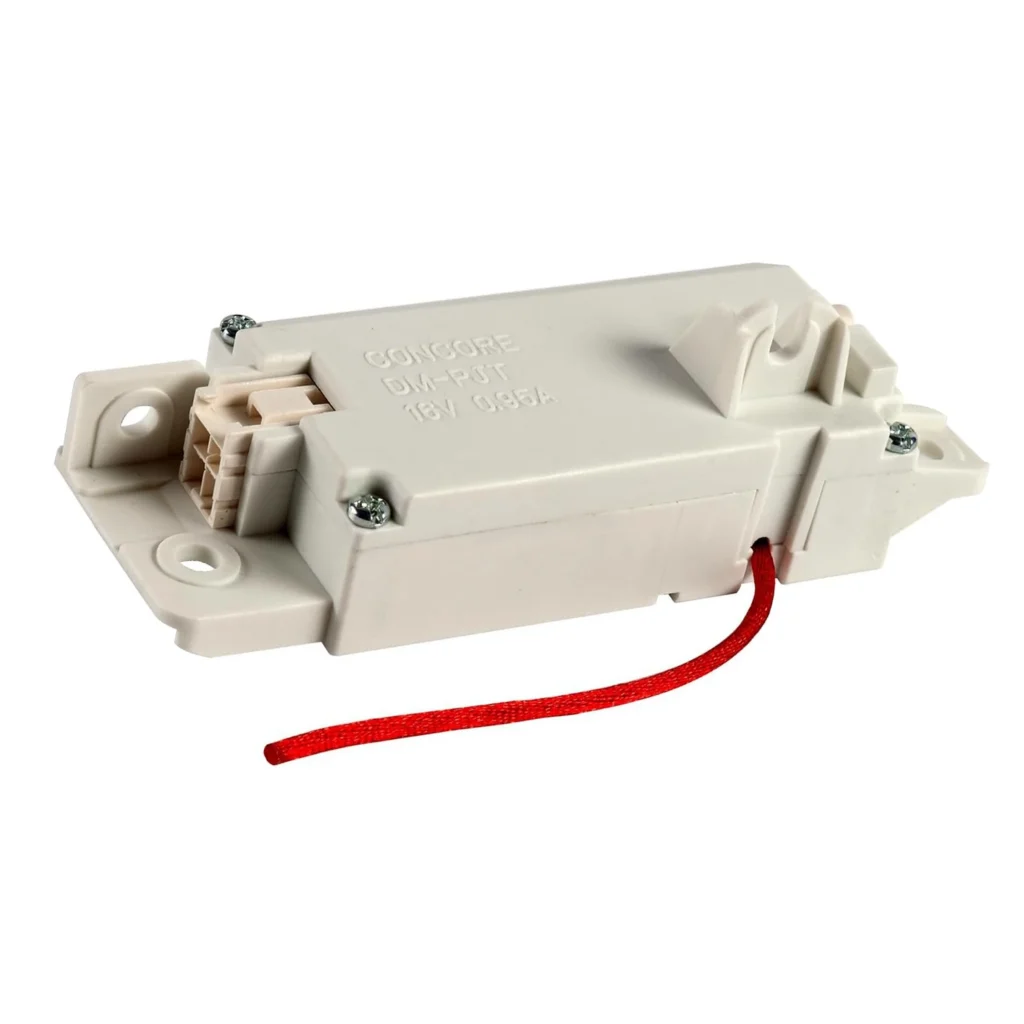

The EBF61215202 lid switch assembly contains both the mechanical switch and the magnetic sensor. It's mounted under the top panel where the lid latches. Over time, the plastic housing cracks, the magnet weakens, or the internal contacts corrode.
How to diagnose: Unplug the washer. Remove the three screws along the back of the top panel, then lift and pull the panel toward you. The lid switch is visible on the right side. Look for cracks in the white plastic housing or burn marks near the wire connector. With a multimeter set to continuity, test between the switch terminals while manually pressing the actuator — you should hear a click and see continuity. No continuity means the switch is dead.
Probability: 70% | Part cost: $90.99 | Difficulty: Moderate
Cause #2: Broken Lid Strike (Magnet Assembly)
The strike is the part attached to the underside of the lid that triggers the switch. On LG models WT1701CV, WT1901CW, and WT4801CW, the plastic strike housing can crack from repeated lid slams. When this happens, the magnet either falls out or sits too far from the switch sensor.
How to diagnose: Open the lid and examine the underside where it contacts the switch. The strike should be flush and centered. If it's loose, cracked, or missing entirely, the switch can't detect a closed lid. Feel for play when you wiggle it — there shouldn't be any.
Probability: 15% | Part cost: $12-25 | Difficulty: Easy
Cause #3: Corroded or Loose Wire Harness Connection
The lid switch connects to the main control board via a six-wire harness. If you've had water overflow issues or live in a humid climate, corrosion can build up on the connector pins. This is especially common on Kenmore 796 series models (79631402410, 79631422410) that share this LG platform.
How to diagnose: With the top panel removed, disconnect the wire harness from the lid switch. Inspect both the male and female connector ends for green corrosion, bent pins, or melted plastic. Even slight corrosion creates intermittent connection problems. Clean with electrical contact cleaner and reconnect firmly — you should hear a definite click.
Probability: 10% | Part cost: $0 (cleaning) | Difficulty: Easy
Cause #4: Faulty Main Control Board
Less common but worth checking: the control board might not be reading the lid switch signal even when the switch works perfectly. This typically happens after a power surge or if the board has gotten wet.
How to diagnose: After confirming the lid switch has continuity and the wiring is intact, check if the control board recognizes other inputs. Can you change cycle settings? Does the water inlet valve respond to fill commands? If only the lid switch function is dead but the switch itself tests good, the board's input circuit has likely failed.
Probability: 4% | Part cost: $180-320 | Difficulty: Advanced
Cause #5: Misaligned Lid or Warped Cabinet
On older units (2010-2012 models like WT1201CW and WT1301CW), the cabinet top can warp slightly from years of vibration. This causes the lid to sit at an angle, preventing proper contact with the switch even when latched.
How to diagnose: Close the lid slowly and watch the strike approach the switch. It should align dead center. If it's hitting off to one side, the lid hinges may be bent or the cabinet has shifted. Sometimes you can adjust this by loosening the hinge screws and repositioning the lid assembly.
Probability: 1% | Part cost: $0-45 | Difficulty: Moderate
DIY Replacement Steps for EBF61215202
If you've confirmed the switch is bad, here's the replacement process:
- Unplug the washer — pull it away from the wall for access
- Remove top panel — three screws along the back edge, lift and pull toward you
- Disconnect wire harness — press the tab and pull straight out
- Remove mounting screws — typically two Phillips screws securing the switch bracket
- Install new EBF61215202 — align the bracket and secure with screws
- Reconnect harness — ensure it clicks firmly into place
- Test before reassembly — plug in washer, press switch actuator manually, hit start
- Replace top panel — slide into front clips, push down, secure back screws
Total time: 20-30 minutes for most DIYers.
When to Call a Pro
Call a technician if you're dealing with multiple electrical issues beyond just the lid switch — like the washer tripping breakers, burning smells, or error codes that persist after switch replacement. Also, if your model is still under warranty (unlikely given the age range), any DIY repair voids coverage.
Expected pro cost: $180-280 including the service call and part markup.
Frequently Asked Questions
Will my LG washer work with the lid open if I bypass the switch?
Technically yes, but don't. Bypassing the lid switch defeats a critical safety feature designed to prevent injuries from spinning baskets. If you need to test the washer temporarily, manually hold the switch actuator down while someone else operates the controls — but never run it this way permanently.
Is EBF61215202 compatible with Kenmore 796 series washers?
Yes — many Kenmore top-loaders from 2010-2015 are rebadged LG machines. Models 79631402410, 79631412310, 79631422410, 79631433710, and 79631462410 all use this exact switch assembly. Check your model number against the compatibility list, but if it's a Kenmore 796 prefix with a top-load agitator design, it's almost certainly compatible.
Why does my washer sometimes start and sometimes not?
Intermittent operation points to either a corroded wire connection or a switch that's failing but not completely dead yet. The contacts inside are making connection sporadically. Clean all connections first — if that doesn't solve it, replace the switch before it fails completely and leaves you with a tub full of wet clothes.
