Whirlpool Dishwasher Door Won't Close — 5 Bracket & Alignment Issues to Fix

You load the dishes, close the door, and... it bounces back open. Or worse, it closes but the latch won't engage. On Whirlpool, KitchenAid, and Maytag dishwashers (especially models like KDFE304DSS0, 7GU2300XTVQ1, and 7WDF530PAYM5), this frustrating issue often traces back to the side mounting brackets that hold your dishwasher in place under the counter.

When these brackets fail, loosen, or get installed incorrectly, the entire cabinet can shift forward or tilt — throwing off the door alignment just enough that it won't latch properly. Here's how to diagnose and fix it.

Quick Symptom Check

• Door bounces back when you try to close it — doesn't engage the latch mechanism
• Door closes but won't stay latched — you hear the latch click but it pops open
• Visible gap between door and tub when closed — uneven seal
• Dishwasher has shifted forward — you can see the front edge isn't flush with cabinets
• Door feels loose or wobbly — excessive play when opening/closing

Cause #1: Missing or Broken Side Mounting Brackets

Likelihood: Very High (60%)

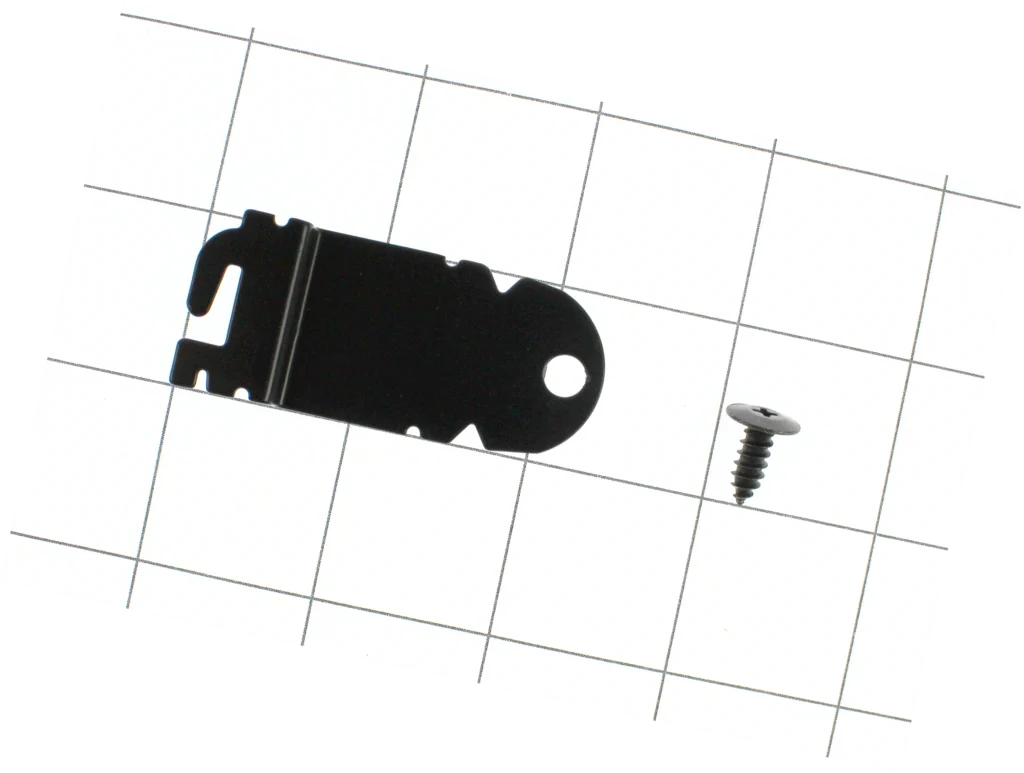

The side mounting brackets (part 8212560) secure your dishwasher to the underside of your countertop. If they're missing, broken, or never installed properly during initial installation, there's nothing anchoring the unit. Over time, the weight of the door opening and closing pulls the dishwasher forward.

How to diagnose: Open the door fully and look at the top corners where the dishwasher meets the countertop. You should see metal brackets securing the unit. If they're missing, loose, or you see screw holes with no bracket, that's your problem.

The fix: Install new side mounting brackets. You'll need to slightly pull the dishwasher out, position the brackets against the underside of your counter, and secure them with screws. The 8212560 kit includes everything needed for both sides. Once secured, push the dishwasher back into position — the door should now align properly with the tub opening.

Cause #2: Dishwasher Tilted Forward (Leveling Legs)

Likelihood: High (25%)

Even with brackets installed, if the front leveling legs are too short or have loosened over time, the entire unit tilts forward. This changes the door's swing arc just enough that the latch striker misses its target.

How to diagnose: Place a level on the top front edge of the dishwasher door when it's open. If it slopes toward you, the unit's tilted forward. Check the adjustable legs underneath the front corners — they should be extended enough to create a slight backward tilt (about 1/4 inch).

The fix: Adjust the front leveling legs by turning them clockwise to extend. You want the dishwasher to lean slightly backward so the door naturally wants to close rather than swing open. Once level, reinstall or tighten the side mounting brackets to lock this position in place.

Cause #3: Over-Tightened or Incorrectly Positioned Brackets

Likelihood: Moderate (10%)

Ironically, brackets that are too tight can also cause door issues. If you crank the mounting screws down too hard, you can warp the dishwasher's top frame slightly, especially on models with plastic tub reinforcements. This distortion affects door alignment.

How to diagnose: Look at the gap around the closed door. Is it uneven — tight on one side, wider on the other? That's often a sign of frame warping from over-tightening. Also check if the brackets are positioned too far forward or backward under the counter.

The fix: Loosen the mounting screws slightly — snug, not torqued. The brackets should secure the dishwasher firmly but not compress the frame. Position brackets about 1-2 inches from the front edge of the countertop for optimal support.

Cause #4: Damaged Countertop Underside Preventing Bracket Grip

Likelihood: Low (3%)

On some installations, especially with particleboard countertops or laminate that's seen water damage, the underside material is too soft or crumbly to hold screws properly. The brackets might be installed, but they're not actually gripping anything solid.

How to diagnose: Try to wiggle the dishwasher side-to-side with the brackets supposedly secured. If it moves easily, feel under the counter where the screws go in. Soft, spongy, or flaking material means the screws aren't holding.

The fix: You'll need to relocate the bracket attachment points to a more solid area, or use longer screws with washers to spread the load. In severe cases, install a reinforcement plate on the underside of the counter before attaching brackets. Some installers use toggle bolts through the countertop as a last resort, but that requires drilling visible holes.

Cause #5: Wrong Bracket Kit for Your Model

Likelihood: Very Low (2%)

The 8212560 bracket kit fits a huge range of Whirlpool-family dishwashers (Whirlpool, KitchenAid, Maytag, Kenmore), but occasionally someone installs a generic aftermarket bracket that doesn't match the mounting hole pattern on their specific unit.

How to diagnose: Check if the bracket holes align naturally with the mounting points on your dishwasher's top corners. If you had to force it, drill new holes, or use washers to make it work, it might be the wrong kit.

The fix: Verify your model number (check the sticker inside the door edge) against the compatibility list. For models like KDHE704DSS0, 7GU3800XTVY6, or 7WDT790SAYM2, the 8212560 kit is the correct OEM-equivalent replacement. If you have an older or non-standard model, you might need a different bracket design.

When to Call a Pro

If you've installed the brackets correctly, leveled the unit, and the door still won't close, you're likely dealing with a bent door frame, damaged hinge springs, or a faulty door latch assembly — all of which require more involved disassembly. Also call a pro if your countertop situation is complex (granite, quartz with waterfall edges, or no solid mounting surface available).

But honestly? Installing side mounting brackets is one of the most straightforward dishwasher fixes. If you can use a screwdriver and a level, you can handle this repair in about 20 minutes.

Frequently Asked Questions

Can I run my dishwasher without side mounting brackets?

Technically yes — the unit will operate. But without brackets, the dishwasher will gradually shift forward from the repeated force of opening/closing the door, eventually causing door alignment issues, leaks from a poor seal, and potential damage to water supply lines that get stretched. Always install brackets for long-term reliability.

Do all dishwashers use the same mounting bracket?

No. While the 8212560 kit covers most Whirlpool-family brands (Whirlpool, KitchenAid, Maytag, Kenmore) made in the last 20 years, Bosch, GE, Samsung, and LG dishwashers use completely different bracket designs. Always verify compatibility with your specific model number before ordering.

Why does my dishwasher keep coming unlatched during the cycle?

If the door pops open mid-cycle, it's almost always because the dishwasher has shifted forward and the latch striker plate is misaligned. The vibration during wash cycles is enough to pop a poorly aligned latch. Install or tighten your side mounting brackets, adjust leveling legs for a slight backward tilt, and the problem should stop immediately.
