Whirlpool Dryer Making Loud Thumping or Squealing Noise — 3 Causes & How to Fix

You're folding laundry in the living room when you hear it — a loud thumping noise from the laundry room that sounds like someone's throwing sneakers in the dryer. Except there aren't any sneakers in there. Just towels. One homeowner with a Maytag LDE312 described it perfectly: "I removed the front panel of the dryer by removing 2 screws and lifting it up and out... once I got inside the dryer, I found the Idler Arm and Idler Pulley were worn and loose."

That thumping, squealing, or grinding noise? It's usually your dryer telling you the idler pulley is on its last legs. Here's how to diagnose which part failed and fix it yourself.

Quick Symptom Check

Before you pull the dryer apart, confirm what you're hearing:

• Loud thumping noise while running — rhythmic banging that matches drum rotation
• Loud squealing noise that changes constantly — pitch varies as the drum speeds up or slows down
• Grinding noise from the idler pulley area — metallic scraping sound from the lower front section
• Belt slipping off — drum won't turn or turns inconsistently
• Dryer runs quieter when empty — noise gets worse with a full load

Cause #1: Worn Idler Pulley Bearing (70% of Cases)

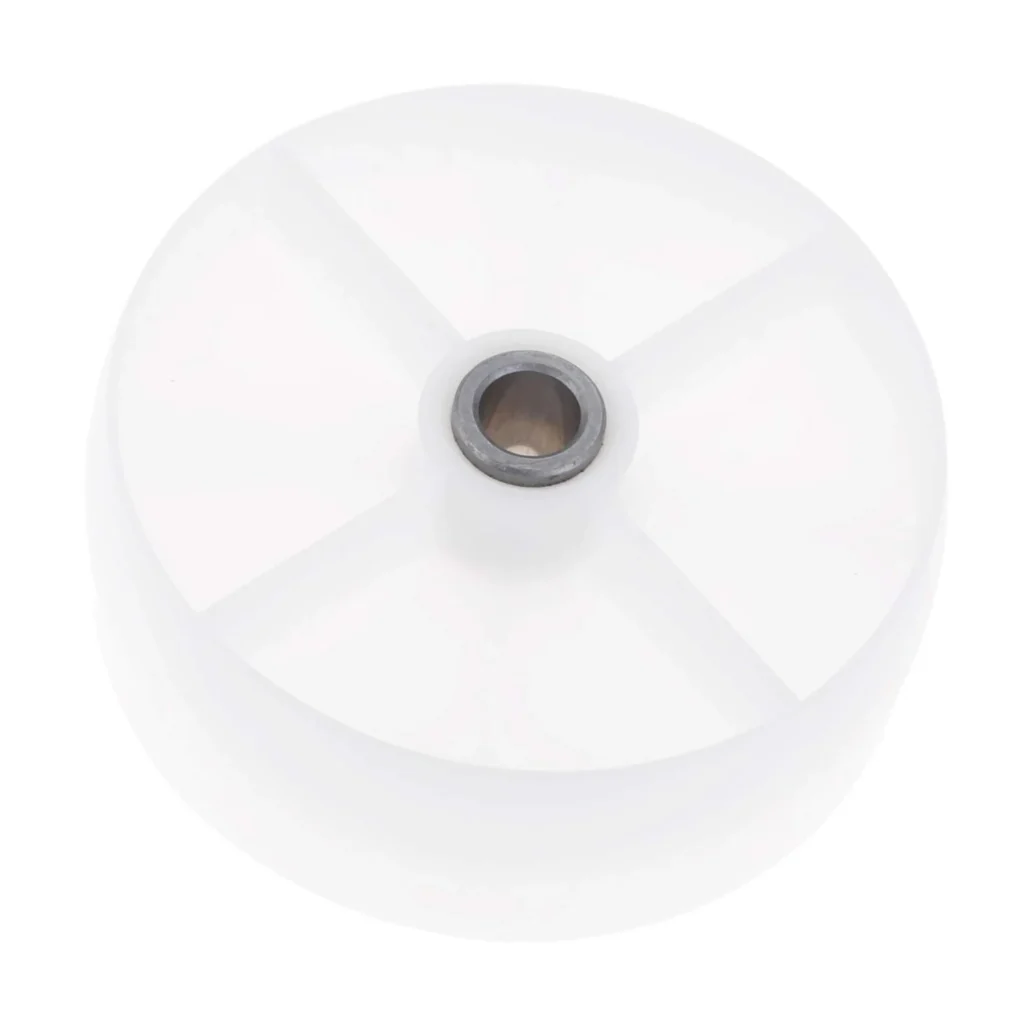

The idler pulley wheel (part 6-3037050) keeps tension on your dryer belt. After years of continuous spinning, the bearing inside wears out. You'll hear a loud squealing or grinding noise that changes pitch as the drum rotates.

How to diagnose:

1. Unplug the dryer completely
2. Remove the front panel — on models like the Maytag LDE4910ACW, this means removing 2 screws at the top and lifting up and out
3. Locate the idler pulley in the lower front area (small wheel with your belt wrapped around it)
4. Spin the pulley by hand — it should rotate smoothly and quietly
5. If it wobbles, feels gritty, or makes noise when you spin it, the bearing's shot

The fix: Replace the idler pulley assembly. One tech noted: "Knowing that several things could be causing the noise, I ordered parts to cover all possibilities; once I got inside the dryer, I found the Idler Arm and Idler Pulley were worn and loose; replaced them and the Tumbler Bearings; the dryer now runs quiet again."

Important: Don't grease the bearings. Grease attracts lint and causes premature wear. The replacement pulley comes pre-lubricated from the factory.

Cause #2: Cracked or Worn Pulley Wheel (20% of Cases)

Sometimes the bearing's fine, but the plastic wheel itself cracks or develops a flat spot from years of belt friction. This causes a rhythmic thumping noise — thump, thump, thump — as the flat spot hits the belt with every rotation.

How to diagnose:

1. With the front panel off, examine the pulley wheel surface
2. Look for visible cracks, chips, or a worn groove where the belt rides
3. Check if the wheel has an oval shape instead of being perfectly round
4. Rotate the drum slowly by hand and watch the pulley — does it wobble?

If you see any damage or deformation, the entire idler pulley assembly needs replacement. The wheel and bearing aren't sold separately.

Cause #3: Loose or Damaged Idler Arm Spring (10% of Cases)

The idler pulley mounts to an arm that's held under tension by a spring. If that spring breaks or comes loose, the pulley won't maintain proper belt tension. You'll hear thumping as the belt slips, and the dryer may struggle to tumble clothes.

How to diagnose:

1. With the front panel removed, press on the idler arm
2. It should have strong spring resistance pushing back
3. If it moves easily or stays in place when pushed, the spring's failed
4. Check if the spring is still attached at both ends

On models like the Maytag DG110 and DE110, the spring attaches to the base of the dryer cabinet. If it's broken, you'll need to replace both the spring and potentially the idler arm assembly.

The 30-Minute Fix

Replacing the idler pulley on Whirlpool, Maytag, and Jenn-Air dryers is straightforward. As one DIYer put it: "Fix was trivial. Took less than 30 minutes to change the old parts out."

What you'll need:

• Replacement idler pulley (6-3037050 or equivalent WP6-3037050)
• Screwdrivers (flat and Phillips)
• Nut driver set
• Pliers
• Telescoping mirror (helpful but not required)
• Work gloves

Step-by-step:

1. Unplug the dryer and pull it away from the wall
2. Remove the front panel screws and lift the panel up and out
3. Take a photo of the belt routing before you remove anything — the belt goes through a metal guide and wraps on the idler pulley in a specific way
4. Release belt tension by pushing the idler pulley toward the motor
5. Slip the belt off the motor pulley, then off the idler
6. Remove the idler pulley mounting bolt (usually 1/4" or 5/16")
7. Install the new idler pulley assembly
8. Re-route the belt around the drum, through the metal guide, around the idler, and onto the motor pulley
9. Use a telescoping mirror to verify the belt is seated correctly on the idler
10. Rotate the drum by hand several times to confirm everything's aligned
11. Reinstall the front panel and test

Belt routing tip: The belt routing on these models is unusual. The belt runs from the drum, through a metal tensioner guide on the right side, around the idler pulley, then to the motor pulley. If you don't route it through that metal guide, the belt will slip off during operation.

When to Call a Pro

This is genuinely a beginner-friendly repair. If you can use a screwdriver and follow a diagram, you can do this. Call a pro if:

• You're uncomfortable working with the drum belt — it requires some finger strength to stretch it back into place
• The noise continues after replacing the idler pulley (could indicate drum bearing or motor issues)
• Your dryer has multiple problems — squealing AND won't heat AND won't start
• You find damaged wiring or burnt components when you open the panel

Labor for this repair typically runs $150-$200. The part costs $14.99. You're saving about $135 doing it yourself.

Preventing Idler Pulley Failure

Idler pulleys wear out naturally over 8-12 years, but you can extend their life:

• Clean the lint screen after every load — lint buildup increases friction on all moving parts
• Vacuum inside the dryer cabinet annually — lint accumulation around the pulley accelerates wear
• Don't overload the dryer — heavy loads put extra stress on the idler pulley bearing
• Never grease the pulley — grease attracts lint and causes faster failure

Frequently Asked Questions

Can I just remove the idler pulley if it's making noise?

No. The idler pulley is what keeps tension on the belt. Without it, the belt will slip and your drum won't turn consistently. The pulley costs $14.99 — just replace it.

Will this pulley work on my Kenmore dryer?

Many Kenmore dryers are rebadged Whirlpool or Maytag models. Check your model number against the compatibility list. Models like the Maytag LDE312, LDE4910ACW, DG110, and DE110 are confirmed compatible. If your Kenmore shares internal components with these, the 6-3037050 will fit.

How long should a dryer idler pulley last?

Typically 8-12 years with normal use. Heavy use (multiple loads daily) or poor maintenance (lint buildup) can shorten lifespan to 5-7 years. If you're replacing it for the first time in 10+ years, that's normal wear and tear.
