LG Washer Dryer Combo Won't Dry — 5 Causes & How to Fix

Your LG all-in-one just finished the wash cycle, started the dry cycle, and now... nothing. The drum's spinning, but your clothes are still soaking wet after two hours. You crack open the door and there's barely any heat, just lukewarm air circulating uselessly.

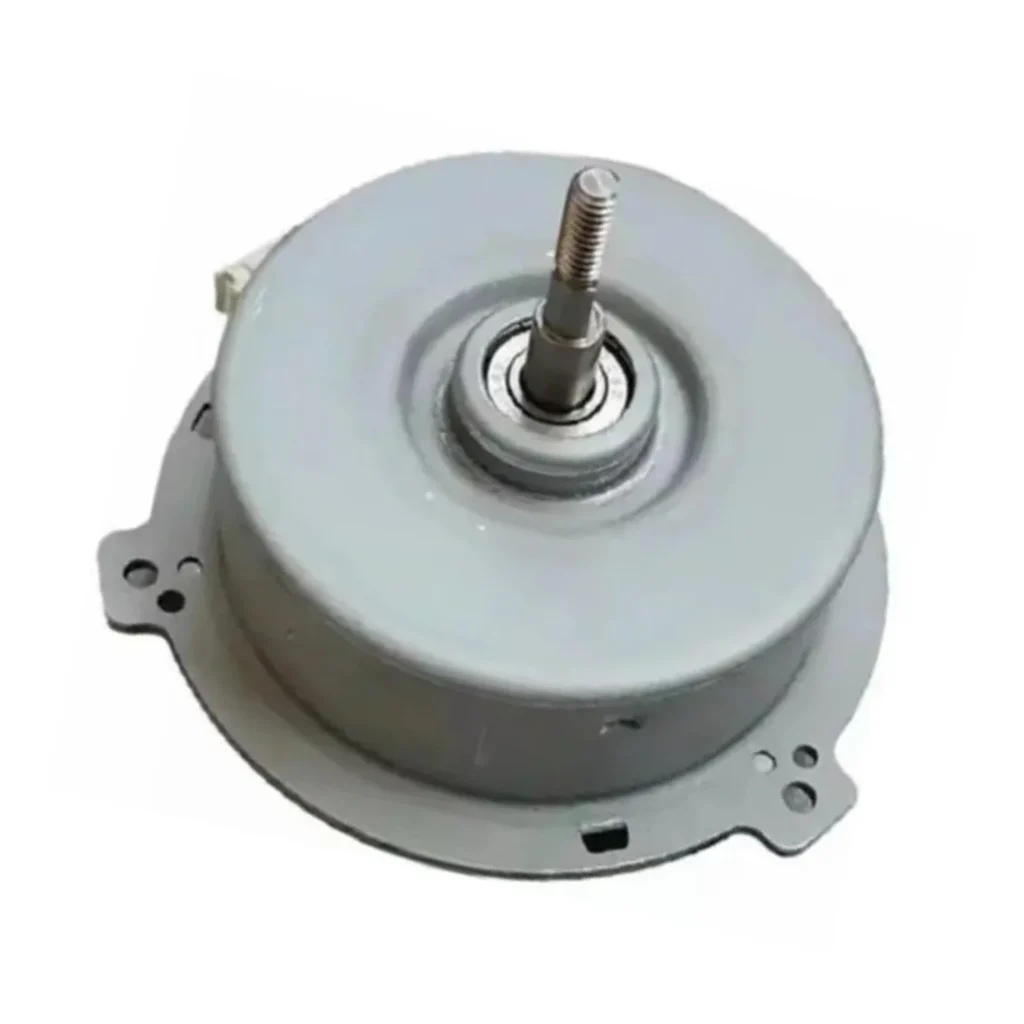

This is the most common complaint with LG combo units like the WM3555HWA, WM3488HW, and WM3997HWA. When the DC fan motor assembly (part 4681ER1007E) fails, your combo loses its ability to move heated air through the drum efficiently. It'll run through the motions, but you're basically tumbling wet laundry in room-temperature air.

Quick Symptom Check

Your combo is likely experiencing fan motor issues if you notice:

• Clothes still wet after full dry cycle — drum spins but no actual drying occurs
• Little to no airflow from the vent — hold your hand near the exhaust during dry cycle
• Excessive heat buildup inside the drum — unit gets hot but air doesn't circulate
• High-pitched squealing or grinding during dry cycle — bearing failure in the motor
• Error codes DE, dE2, or tE — motor communication or temperature sensor failures
• Dry cycle stops prematurely — thermal cutoff triggers due to poor airflow

Cause #1: Failed DC Fan Motor Assembly (65% of Cases)

The 4681ER1007E fan motor is what pulls air through the heating element and pushes it through the drum. When it fails, you lose airflow completely or the motor runs so weakly it can't generate enough circulation to dry anything.

How to diagnose:

1. Start a dry cycle and listen carefully — you should hear the fan motor humming distinctly from the drum motor
2. Access the rear panel (usually 6-8 screws around the perimeter)
3. Locate the fan motor assembly on the lower right side of the unit
4. With the unit running, check if the fan blade is spinning — if it's stationary or barely moving, the motor's dead
5. Test motor terminals with a multimeter — should read 150-180 ohms of resistance

The fix: Replace the entire DC fan motor assembly. The 4681ER1007E replaces older versions 4681ER1007A and 4681ER1007C, so it's the current revision LG's using. Expect to pay around $130-140 for the OEM part. This isn't a repair you can patch — when these motors fail, replacement is the only option.

Difficulty: Moderate. You'll need to remove the rear panel, disconnect the wiring harness, remove mounting screws, and reverse the process. Takes about 45-60 minutes if you're methodical.

Cause #2: Clogged Condenser Filter or Lint Buildup (20%)

LG combo units use a condenser system instead of venting all the air outside. There's a filter assembly that catches lint and moisture. When it's clogged, the fan motor can be working perfectly but airflow gets choked off before it reaches the drum.

How to diagnose:

1. Open the lower front panel — usually a kickplate that pops off
2. Pull out the condenser filter assembly (twist counterclockwise on most models)
3. Check for thick lint buildup, fabric softener residue, or visible blockage
4. Inspect the condenser coils behind the filter — if they're matted with lint, airflow is restricted

The fix: Clean the filter under running water with a soft brush. For heavy buildup, soak it in warm water with a bit of dish soap for 15 minutes. Clean the condenser coils with a vacuum attachment or compressed air (gently — don't bend the fins). Do this monthly if you use the dryer function regularly.

Cause #3: Faulty Thermistor or Temperature Sensor (8%)

The thermistor monitors drum temperature and tells the control board whether to keep heating and running the fan. If it's reading incorrectly, the board might shut down the dry cycle early, thinking the clothes are already dry when they're soaking wet.

How to diagnose:

1. Access the rear panel and locate the thermistor near the heating element
2. Disconnect it and test resistance at room temperature — should read around 50,000 ohms at 77°F
3. Heat it gently with a hair dryer — resistance should drop as temperature increases
4. If readings are erratic or out of spec, the sensor's bad

The fix: Replace the thermistor assembly. They're usually $15-30 and take 15 minutes to swap. Make sure you get the correct part number for your specific model — LG uses different sensors across their combo line.

Cause #4: Control Board Communication Failure (5%)

Sometimes the fan motor is fine, but the main control board isn't sending power to it. This can happen after power surges or due to corroded connections on the board itself.

How to diagnose:

1. Check voltage at the fan motor connector while the dry cycle is running — should read 120V AC
2. If there's no voltage, trace back to the control board
3. Inspect the board for burnt components, swollen capacitors, or corrosion around the fan motor relay

The fix: If the board's the culprit, you're looking at a $150-300 repair depending on the model. Sometimes you can clean corrosion with contact cleaner and get it working again, but often board failures require replacement.

Cause #5: Blocked External Vent or Drain Pump (2%)

Even though combo units are mostly condensing dryers, they still have a drain system for moisture removal. If the drain pump or hose is clogged, water can't evacuate properly, and the unit will struggle to dry effectively. Also, check if your external vent (if you have one connected) is kinked or blocked.

How to diagnose:

1. Run a drain cycle and listen for the pump running
2. Check the drain hose for kinks or clogs
3. If you have an external vent connected, disconnect it and run a dry cycle — if performance improves dramatically, the vent system's your problem

The fix: Clear the drain hose, replace the pump if it's not running (around $40-70), or clean out your external vent line.

When to Call a Pro

Most fan motor replacements are DIY-friendly if you're comfortable with basic hand tools and following disassembly videos. But call a technician if:

• You're getting multiple error codes simultaneously — could indicate board or wiring harness issues
• You've replaced the fan motor but it still won't dry — there's a deeper electrical problem
• You smell burning plastic or see signs of electrical arcing inside the unit
• Your unit is still under warranty — DIY repairs can void coverage

Expect to pay $200-350 for a pro to diagnose and replace the fan motor, depending on your area. That includes the service call, labor, and markup on the part.

Frequently Asked Questions

How long does the DC fan motor typically last in LG combo units?

Most LG combo fan motors last 5-8 years with regular use. If you're running multiple dry cycles daily, expect closer to 5 years. The bearings wear out from constant use, and lint infiltration accelerates failure even with regular filter cleaning. Models from 2015-2017 (like the WM3488HW and WM3555HWA) are hitting the age where fan motor failures are becoming common.

Can I run the washer function if the dryer fan motor is dead?

Yes, absolutely. The wash function operates completely independently from the dry cycle components. You can keep using it as a washer-only unit while you wait for parts or decide on repairs. Just make sure you're removing clothes promptly and drying them another way — don't let wet laundry sit in the drum for extended periods.

Is the 4681ER1007E compatible with all LG combo models?

Not quite. It works with most LG and Kenmore combo units from about 2012-2020, including the WM series and F4V9RCP2 models. Always verify your model number against the compatibility list before ordering. The easiest way is to match your existing part number — if you see 4681ER1007A or 4681ER1007C on your current motor, the 4681ER1007E is the updated replacement. If your model number isn't on the compatibility list, search by your full model number to find the correct motor assembly.
