LG Dryer Drum Not Spinning — 5 Causes & How to Fix

You load wet clothes into your LG dryer, press start, hear the motor hum... but the drum stays completely still. The belt's intact, the machine sounds alive, yet nothing moves. This happens more often than you'd think — and the culprit is usually one of five specific failures.

Before you pull the dryer away from the wall, let's narrow down what's actually broken. I've fixed this issue on hundreds of LG models from the DLE2301R to the DLEX8377NM, and the diagnosis pattern is surprisingly consistent.

Quick Symptom Check

• Motor runs but drum doesn't move: Most likely drum motor shaft failure or belt issue
• Complete silence when you press start: Motor replacement needed or thermal fuse blown
• Intermittent spinning with grinding noise: Motor bearings seized or idler pulley frozen
• Drum spins by hand but won't start: Electrical issue or motor capacitor failure
• Burning smell before it stopped: Motor windings burned out

Cause #1: Failed Drum Drive Motor (70% of Cases)

Here's the reality: LG's 4681EL1008A drum motor is a workhorse until it isn't. These motors typically fail around the 8-12 year mark, and when they go, they go completely. The motor shaft bearings wear out, the brushes deteriorate, or the windings short.

How to diagnose: Unplug the dryer. Remove the front panel to access the drum. Try spinning the drum by hand — it should rotate smoothly with moderate resistance. Now look at the motor mounted below. Check for these signs:

• Visible burn marks on the motor housing
• Oil or grease leaking from the motor shaft
• Motor shaft doesn't turn when you rotate the drum pulley
• Burning electrical smell near the motor area

Use a multimeter to test motor continuity. You're looking for 3-8 ohms of resistance between the motor terminals. Infinite resistance? Motor's dead.

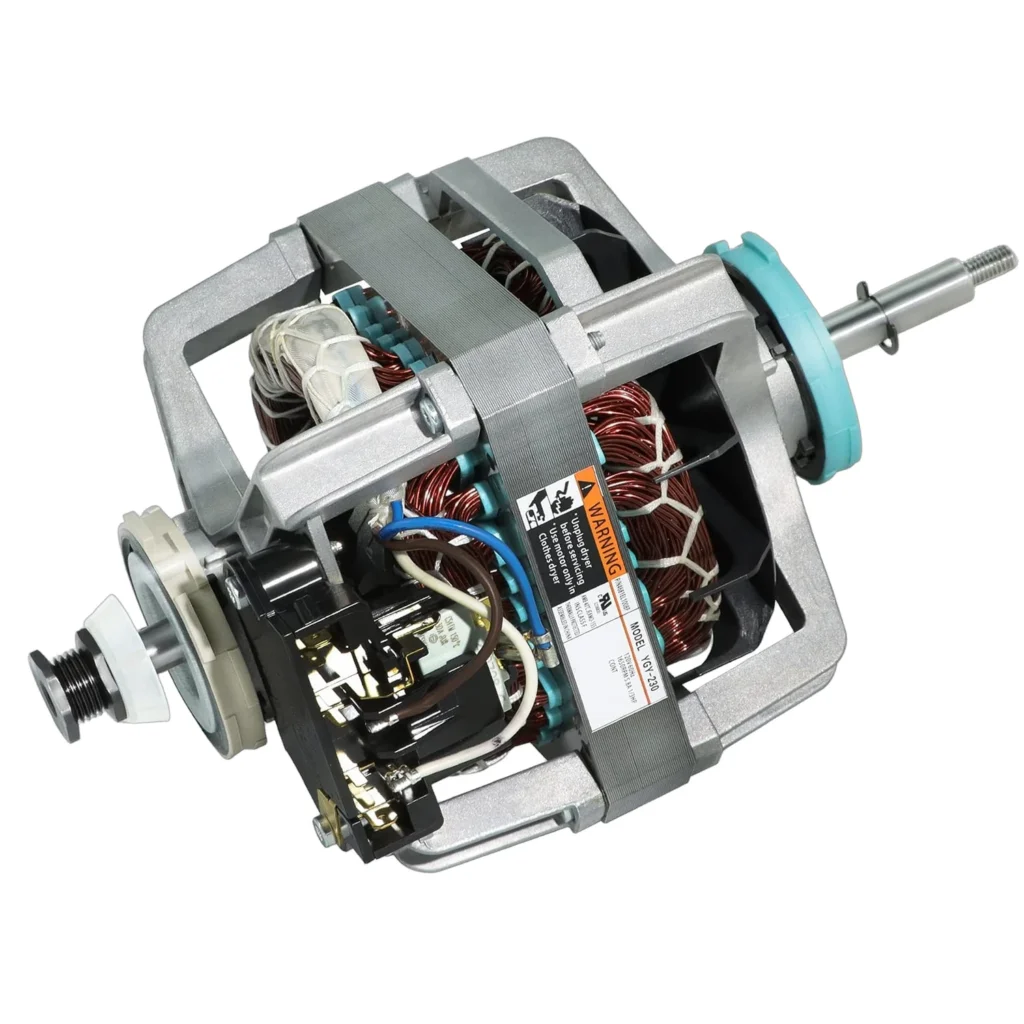

The fix: Replace the drum drive motor with part 4681EL1008A (also replaces AP4438218, 4681EL1002A, 4681EL1006A, and PS3523290). This isn't a quick Saturday afternoon job — expect 2-3 hours if you're methodical. You'll need to remove the front panel, disconnect the drum belt, and unbolt the old motor assembly.

Cost: Motor runs $222.99. Professional install adds $150-200 labor.

Cause #2: Broken or Slipped Drive Belt (15% of Cases)

Even though you might've checked the belt and it looked fine, there's a specific failure mode worth examining. The belt can break on the underside where you can't see it, or it can stretch just enough to slip off the idler pulley during operation.

Diagnosis: Open the top panel (two screws at the back edge). Reach down and manually spin the drum. If it spins freely with almost no resistance — like a merry-go-round — your belt's either broken or completely off the pulleys.

For LG models like the DLEX2501W and DLG2524W, you'll need to pull the entire front panel to actually see the belt routing. Check the belt for:

• Cracks or fraying on the inner ribbed surface
• Glazed, shiny appearance (indicates slipping)
• Proper tension around the idler pulley

The fix: Replace with a new belt (typically part 4400EL2001A for most LG models). While you're in there, inspect the idler pulley — if it's not spinning freely, replace it too or you'll be back here in six months.

Cost: Belt $15-25, idler pulley $20-30.

Cause #3: Seized Idler Pulley or Tensioner (8% of Cases)

The idler pulley maintains belt tension. When its bearing seizes, the belt can't transfer power from the motor to the drum. You'll hear the motor running but see zero drum movement.

Diagnosis: With the front panel off, locate the spring-loaded idler pulley (it's the small wheel the belt wraps around). Try spinning it with your finger. It should rotate smoothly with minimal resistance. If it's stiff, grinding, or completely locked up, that's your problem.

Models like the DLGX3901B and DLE7000W are particularly prone to idler pulley failure because of lint accumulation in the bearing housing.

The fix: Replace the idler pulley assembly. This is actually easier than replacing the motor — maybe 45 minutes of work once the panel's off. Release the spring tension, slip the old pulley off, install the new one.

Cost: Idler pulley assembly $25-40.

Cause #4: Thermal Fuse Blown (5% of Cases)

If your dryer is completely dead — no motor hum, no lights, nothing — the thermal fuse might've blown. This is a safety device that kills power when the dryer overheats. Once blown, it doesn't reset.

Diagnosis: The thermal fuse is typically mounted on the blower housing or heating element housing. Test it with a multimeter for continuity. No continuity = blown fuse = no power to the motor.

Why it blows: Restricted airflow. Check your vent system for blockages before replacing the fuse, or it'll just blow again.

The fix: Replace thermal fuse (part varies by model, typically $10-20) and clean your entire vent system.

Cost: Fuse $10-20, 30 minutes labor.

Cause #5: Broken Motor Pulley or Drum Support Rollers (2% of Cases)

Rare but worth checking: the motor pulley can crack or strip, preventing the belt from turning. Or the drum support rollers can seize so completely that the motor can't overcome the friction.

Diagnosis for motor pulley: Inspect the pulley wheel attached to the motor shaft. Look for cracks, missing pieces, or a loose fit on the shaft.

Diagnosis for support rollers: Manually rotate the drum. If it requires significant force or makes scraping sounds, the support rollers (front and rear) have likely seized.

The fix: Replace the motor pulley or support roller kit. Support rollers typically come in sets — replace all of them at once or the problem repeats.

Cost: Motor pulley $15-25, support roller kit $40-60.

When to Call a Pro

Look, I'm all for DIY repairs, but motor replacement on LG dryers involves disconnecting electrical terminals, handling a 20-pound motor assembly, and perfectly routing a belt through a tight drum configuration. If you've never opened a dryer before, this isn't the ideal learning project.

Call a professional if:

• You're uncomfortable working with 240V electrical connections
• Your dryer is still under warranty (unauthorized repairs void coverage)
• You don't have 2-3 hours to commit to the repair
• The motor shaft is damaged or the mounting bracket is broken

That said, if you've got basic mechanical skills and the right tools, replacing the 4681EL1008A motor is absolutely doable. Just work methodically and take photos before disconnecting anything.

Frequently Asked Questions

How long does an LG dryer motor typically last?

Most LG drum motors last 8-12 years under normal use — about 600-800 cycles. Heavy users (families doing 2+ loads daily) might see motor failure around year 6-7. The 4681EL1008A motor is actually more durable than earlier versions, but no motor runs forever.

Can I replace just the motor bearings instead of the whole motor?

Technically yes, but realistically no. The motor housing is sealed, and accessing the bearings requires special tools and press equipment. By the time you factor in labor, you're better off replacing the entire motor assembly. Plus, if the bearings failed, the motor windings are probably degraded too.

Why does my LG dryer motor run but the drum still won't spin?

This points to a mechanical disconnect between the motor and drum. Most common causes: belt snapped or fell off, idler pulley seized, or motor pulley stripped. Start by opening the front panel and visually inspecting the belt routing. If the belt looks good, check that the idler pulley spins freely and the motor pulley is intact on the motor shaft.
