Refrigerator fails to maintain proper temperature because condenser fan has stopped circulating air over the coils and compressor.
Freezer section rises above safe temperatures while compressor continues running without adequate airflow from failed condenser motor.
Grinding, rattling, or humming noise from the bottom rear of the refrigerator caused by worn motor bearings or a loose fan shaft.
Compressor runs excessively hot due to loss of condenser fan cooling, triggering thermal overload shutoff and intermittent cooling loss.
Refrigerator compressor cycles continuously without reaching set temperature because heat is not being dissipated by the condenser fan.
Repeated clicking from the compressor area when the motor tries to start but fails due to seized bearings or electrical failure.
💡 Pro Tip: How to Tell If Your Condenser Fan Motor Has Failed
Your part is likely the culprit if you notice any of the following:
⚠️ Refrigerator is not cooling adequately even though the compressor is running
⚠️ Loud grinding, rattling, or humming noise coming from the back bottom of the fridge
⚠️ Compressor feels unusually hot to the touch — a sign airflow has stopped
⚠️ Freezer section too warm while fridge-side temperature is marginally okay
🛠 Quick test: Pull the fridge away from the wall, remove the rear access panel, and check whether the condenser fan is spinning while the compressor runs. No spin with power present = replace the motor. Use a multimeter to confirm voltage at the motor terminals before ordering.

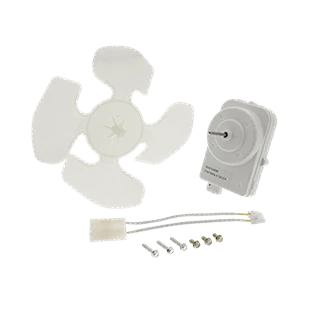

📦 What's in the Box
✅ 1× Condenser Fan Motor (115V / 60Hz / 4.1W)
✅ 1× Fan Blade (6-5/8" diameter)
✅ 1× Wire Harness (7" length)
✅ 6× Mounting Screws
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
