Dryer drum spins and motor runs normally but no warm or hot air is produced — the heating coil is burned out and must be replaced.
Clothes require two or more cycles to dry completely due to insufficient heat output caused by a partially failed element coil.
A shorted element coil can bypass the cycling thermostat and cause the dryer to overheat, scorching fabrics or tripping the high-limit thermostat.
A failing element drawing excess current stresses the thermal protection circuit, causing recurring fuse failures even after replacement.
Oxidizing coil wire or arcing at a break point in the element produces a distinct burning odor before the element fails completely.
💡 Pro Tip: How to Know Your Heating Element Has Failed
Your part is likely the culprit if you notice any of the following:
⚠️ Dryer runs and tumbles but produces absolutely no heat
⚠️ Clothes take multiple cycles to dry or come out still damp
⚠️ Burning smell or visible break/gap in the coil when inspected
⚠️ Dryer repeatedly blows thermal fuses or trips the circuit breaker
🔍 Diagnosis tip: Set your multimeter to the Ω (ohms) continuity setting and probe both terminals of the element. A functional element reads roughly 8–12 Ω. An open/infinite reading confirms the coil is burned out. Always check the thermal fuse and cycling thermostat first — a clogged vent is the #1 root cause of element failure.
📦 What's in the Box

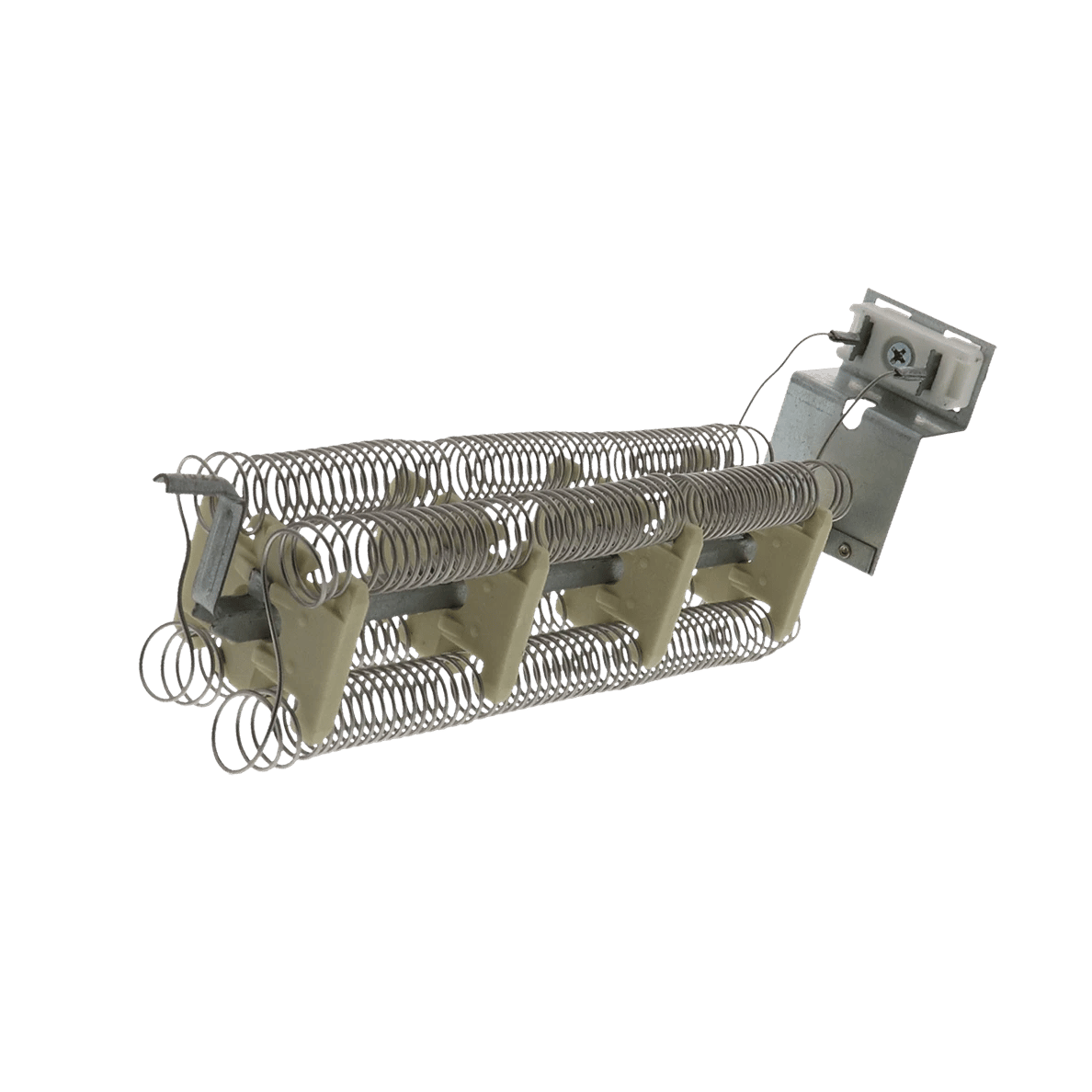

✅ 1× Heating Element Assembly with coil & insulators (240V / 4750W)
✅ 1× L248-80 High-Limit Thermostat (pre-attached)
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
