Home/Refrigerator Parts/Refrigerator Evaporator Fan Motor/EAU61524007
On Sale

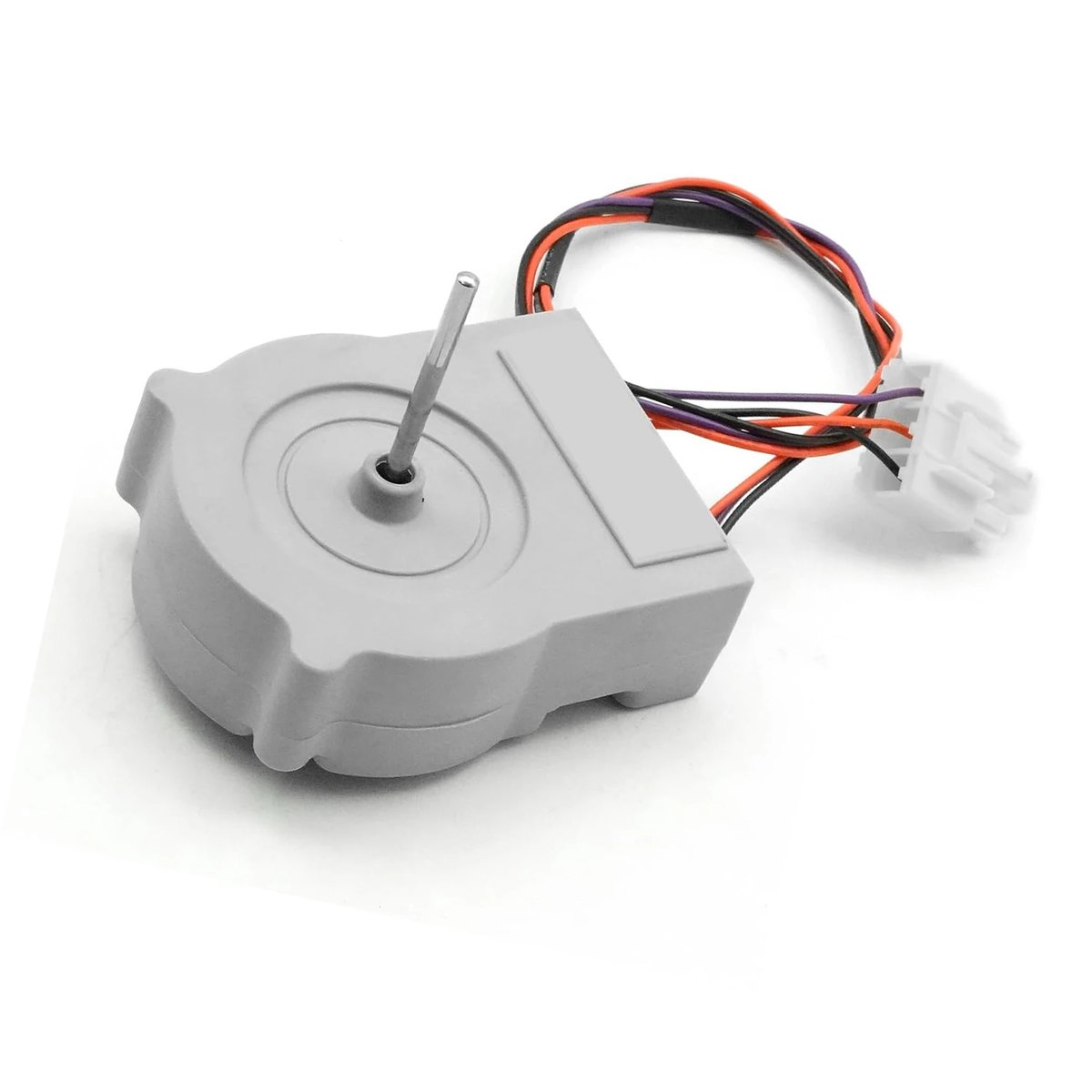

EAU61524007 Refrigerator Evaporator Fan Motor Compatible with LG Kenmore, Replaces AP5950081 EAU60694510 PS10058947
  • EAU61524007 Refrigerator Evaporator Fan Motor Compatible with LG Kenmore, Replaces AP5950081 EAU60694510 PS10058947
  • EAU61524007 Refrigerator Evaporator Fan Motor Compatible with LG Kenmore, Replaces AP5950081 EAU60694510 PS10058947
  • EAU61524007 Refrigerator Evaporator Fan Motor Compatible with LG Kenmore, Replaces AP5950081 EAU60694510 PS10058947
Factory Certified
Free Ship $49+
30-Day Returns
1-Year Warranty
Compatible Brands
Compatible Models
Showing 116 compatible models
Aftermarket Replacement · Factory Direct
OEM-compatible part built to original specifications. Not manufactured by or affiliated with the original equipment brand.

EAU61524007 Refrigerator Evaporator Fan Motor Compatible with LG Kenmore, Replaces AP5950081 EAU60694510 PS10058947

SKU: EAU61524007
OEM RetailBranded
$89.17
Via distributor
Source: RepairClinic.com · Apr 2026
OEM brand & packaging
Factory direct price
1-year warranty
Our PartBest Value
$53.99
Factory direct
OEM-Compatible
Meets OEM specifications
Factory direct price
1-year warranty
Save by going factory direct
OEM-compatible · no distributor markup
$35.18
39% less than OEM retail
Order within --:-- to ship today
Repair Time45-90 Minutes
DifficultyModerate
DIY FriendlyYes
Tools Needed
Phillips ScrewdriverFlat-head ScrewdriverNeedle-nose PliersMultimeteroptional
Qty
Ships from China · 10–20 business days
No sales tax outside CA
or
EAU61524007 Refrigerator Evaporator Fan Motor Compatible with LG Kenmore, Replaces AP5950081 EAU60694510 PS10058947
$80.99 Original price was: $80.99.$53.99Current price is: $53.99.
In Stock

This Part Fixes These Problems

Warm Refrigerator

Fridge section too warm while freezer stays cold — failed evaporator fan stops cold air from circulating into the fresh food compartment.

ER FF / RF Error Code

LG and Kenmore refrigerators display ER FF or RF error when the control board does not detect the correct RPM signal from the freezer evaporator fan motor.

Grinding or Humming Noise

Worn motor bearings cause loud grinding or buzzing sounds from behind the freezer back panel; replacing the motor eliminates the noise.

Fan Won't Run

Motor seized due to age, ice buildup, or bearing failure causes the fan blade to stop spinning entirely, halting all airflow through the evaporator coils.

Freezer Section Too Warm

When the evaporator fan fails, cold air is not drawn over the evaporator coils and distributed into the freezer compartment, causing temperature rise.

Repair Guides

LG Refrigerator Not Cooling in Freezer — 5 Causes & How to Fix EAU61524007
May 29, 2026
OEM vs Aftermarket Evaporator Fan Motor for LG Refrigerators: Honest Comparison (EAU61524007)
May 26, 2026

Product Description

Why Choose Our EAU61524007 Refrigerator Evaporator Fan Motor?

🔧
Built to OEM SpecificationsDC 13V, 0.118A, 1.5W rated; 3-pin connector; shaft length 35mm (1.37"), shaft diameter 3mm (1/8"); motor diameter 2.4", length 3.0" — exact match to original LG EAU61524007 dimensions.
❄️
Restores Proper Airflow & CoolingCirculates air through the freezer and fresh food compartments over the evaporator coils, maintaining consistent, even temperatures and proper food preservation.
🔁
Wide Cross-Reference CompatibilityDirectly replaces OEM part numbers EAU60694510, AP5950081, PS10058947, PD00006349, EAP10058947, 3286319, and 11301295 — one part covers all major cross-references.
🏷️
Fixes ER FF Error CodeDirectly addresses the LG / Kenmore ER FF and RF error codes caused by a failed or slow freezer evaporator fan motor — the #1 reason these codes appear.
🛡️
Corrosion-Resistant Dual-Core ConstructionPremium metal and plastic composite build resists daily wear, condensation, and freezer-grade corrosion for long-term reliable performance.
💰
Save vs. OEM PriceOEM equivalent listed at $82.95–$89.17 at major parts retailers. Our aftermarket replacement delivers the same fit and function at a significantly lower cost.

💡 Pro Tip: How to Diagnose a Failed Evaporator Fan Motor

Your part is likely the culprit if you notice any of the following:

⚠️ Refrigerator section is warm while the freezer remains cold

⚠️ Error code ER FF or RF displayed on the control panel

⚠️ Loud grinding or humming noise coming from the freezer back wall

⚠️ Fan blade spins freely by hand but motor does not run when powered

🔬 Quick Test: With the freezer door open and door switch bypassed, listen for the fan. No airflow or a seized motor confirms replacement is needed. On LG French-door models, check connector 7 on the control board — between pins 1 and 3 you should read 0–5 VDC feedback signal; a dead motor reads 0 V continuously.

📦 What's in the Box

✅ 1× Evaporator Fan Motor (DC 13V / 1.5W / 3-pin, replaces EAU61524007)

Questions & Answers

How do I know if EAU61524007 is the right evaporator fan motor for my LG refrigerator?
Answered by Support Team  ·  Mar 15, 2024
Check your model number on the label inside the fridge door jamb. This motor fits the freezer evaporator fan position on LG French-door models such as LFXS30766S, LFXC24726S, LMXS30776S, and many others listed above. If your wiring harness has 3 pins, this is the correct part. Models requiring a 4-pin harness use a different motor — contact us with your full model number if you are unsure.
What error codes does replacing EAU61524007 fix?
Answered by Support Team  ·  Nov 20, 2023
This motor directly addresses the ER FF (freezer fan error) and RF error codes on LG and Kenmore Elite refrigerators. These codes appear when the main control board does not receive the correct RPM feedback signal from the evaporator fan motor. After installing the new motor, clear the error by unplugging the unit for 5 minutes before restarting.
Does this aftermarket motor use the same 3-pin connector as the OEM EAU61524007?
Answered by Support Team  ·  Jan 8, 2025
Yes. Our replacement motor uses the same 3-pin connector and wiring harness layout as the OEM part. It is rated at DC 13V, 0.118A, 1.5W and has the identical shaft length (35mm) and diameter (3mm), ensuring a plug-and-play installation with no wiring modifications required.
Is this motor compatible with Kenmore Elite refrigerators sold at Sears?
Answered by Support Team  ·  Jul 22, 2024
Yes. Kenmore Elite refrigerators are manufactured by LG and use identical internal components. Models such as 795.72483.411, 795.74049.411, 79572062312, and many other 795-series Kenmore/Kenmore Elite numbers are fully compatible with this replacement motor.
My freezer is cold but the fridge compartment is warm — will this part fix it?
Answered by Support Team  ·  Feb 10, 2026
This is the classic symptom of a failed freezer evaporator fan motor on LG French-door refrigerators. When the freezer fan stops, cold air cannot be pushed into the refrigerator section, causing the fridge to warm up while the freezer remains cold. Replacing EAU61524007 restores proper airflow to both compartments. We recommend also checking that no ice has built up around the fan blades before assuming the motor is faulty.

We typically respond within 1 business day. Include your appliance model number for the fastest answer.
