Freezer or fresh-food compartment stops cooling because the failed motor can no longer circulate cold air over the evaporator coils.
Worn motor bearings produce persistent humming, grinding, or squealing sounds from inside the freezer section.
Without proper airflow, moisture accumulates on the evaporator coils, causing thick frost or ice buildup on the rear freezer wall.
Fluctuating or uneven temperatures throughout the fresh-food compartment caused by intermittent motor failure reducing airflow.
Motor shaft does not rotate at all due to seized bearings, open winding, or age-related electrical failure.
💡 Pro Tip: Is Your Evaporator Fan Motor the Problem?
Your part is likely the culprit if you notice any of the following:
⚠️ Freezer or refrigerator not cooling, or running noticeably warm
⚠️ Loud humming, grinding, or buzzing noise coming from inside the freezer section
⚠️ Excessive frost or ice buildup on the evaporator coils or rear freezer wall
⚠️ Fan blade visible but motor shaft does not spin when door switch is depressed
🛠 Quick test: Open the freezer, press and hold the door switch to activate the fan circuit. If the fan does not spin (or spins slowly/noisily), the motor has failed. Use a multimeter set to continuity to verify the motor windings — an open winding confirms replacement is needed.
📦 What's in the Box

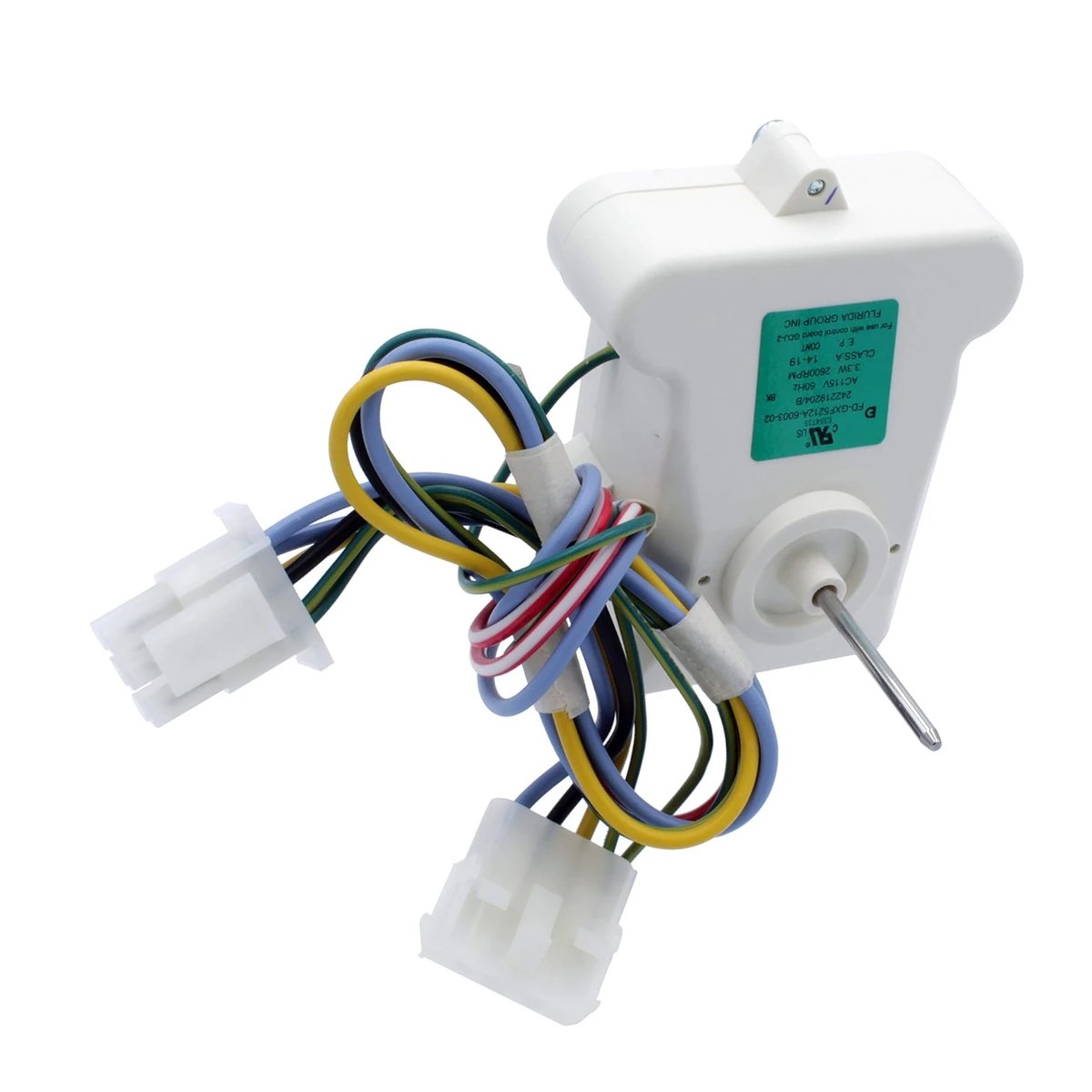

✅ 1× Evaporator Fan Motor Assembly 242219204 (115V / 3.3W / 2600 RPM, with 6-prong plug, 4-prong plug, and ground wire)
We typically respond within 1 business day. Include your appliance model number for the fastest answer.
Disclaimer: Compatibility information, part numbers, and model fitment data on this page are sourced from manufacturer databases and third-party references. While we strive for accuracy, please verify your appliance model number before ordering. Heima is not responsible for errors or omissions in compatibility listings.
