GE, Hotpoint & Kenmore Range Surface Burner Receptacle Parts — Models & Compatibility

Your stovetop burner won't heat, and you've already checked the element itself. The problem is often the receptacle — that ceramic block where the burner plugs in. This hub covers the WB2X8228 surface burner receptacle and wire kit that fits over 100 GE, Hotpoint, and Kenmore electric range models from the 1990s through early 2000s.

Is This the Right Part for Your Model?

Check your model number before ordering. On most GE and Hotpoint ranges, you'll find it on a metal tag inside the oven door frame or along the front edge when you open the door. Kenmore models typically have it in the same location. This receptacle fits ranges with traditional coil-style burners, not glass cooktops.

About This Replacement Receptacle

The WB2X8228 replaces the ceramic terminal block that connects your burner element to the range's electrical system. It includes the receptacle body and pre-attached wire leads, making installation straightforward. This part commonly fails when repeated heat cycles cause the ceramic to crack or the terminal contacts to burn out — you'll see scorch marks, melted plastic, or the burner simply won't heat at all. The receptacle works with both 6-inch and 8-inch burner positions depending on your range configuration.

Compatible Range Series

This part fits multiple product lines across three brands. The JBP series represents GE's most common residential ranges from this era, while Hotpoint RB models used identical electrical components. Kenmore ranges manufactured by GE (model numbers starting with 363) also use this receptacle.

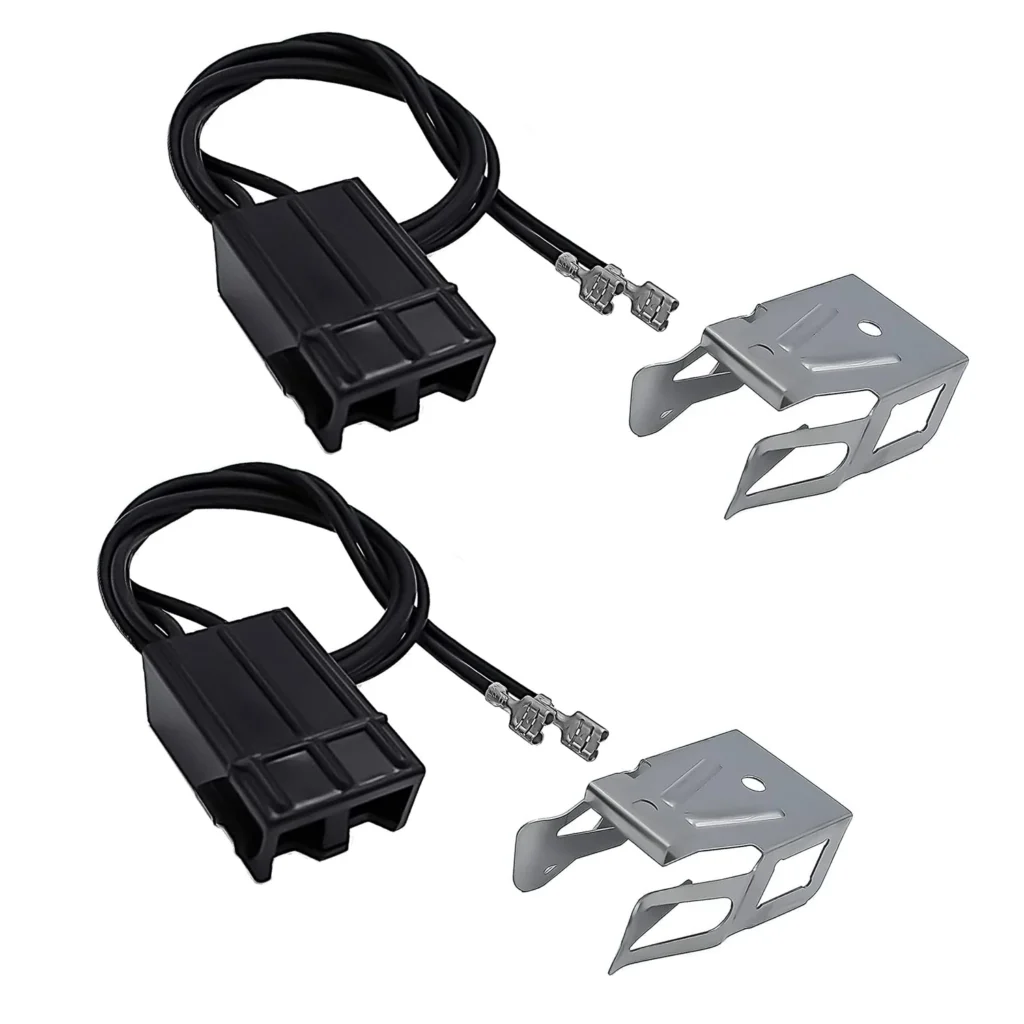

What Comes in the Kit

You get the complete receptacle assembly with attached wire harness — no separate wiring needed. The ceramic block housing, metal terminals, and color-coded wire leads are all pre-assembled. This is a direct replacement for AP2013499, PS242972, and WB62X5358.

Common Failure Symptoms

• Element will not heat at any setting
• Burner works intermittently or only on high
• Visible burn marks or melted plastic around receptacle
• Burner element looks fine but won't turn on

Installation Overview

Replacing a burner receptacle requires disconnecting power at the breaker, removing the cooktop (it typically lifts from the front), and swapping the old receptacle for the new one. The wire connections use spade terminals that push on — no soldering required. Most people complete this repair in 30-45 minutes.
