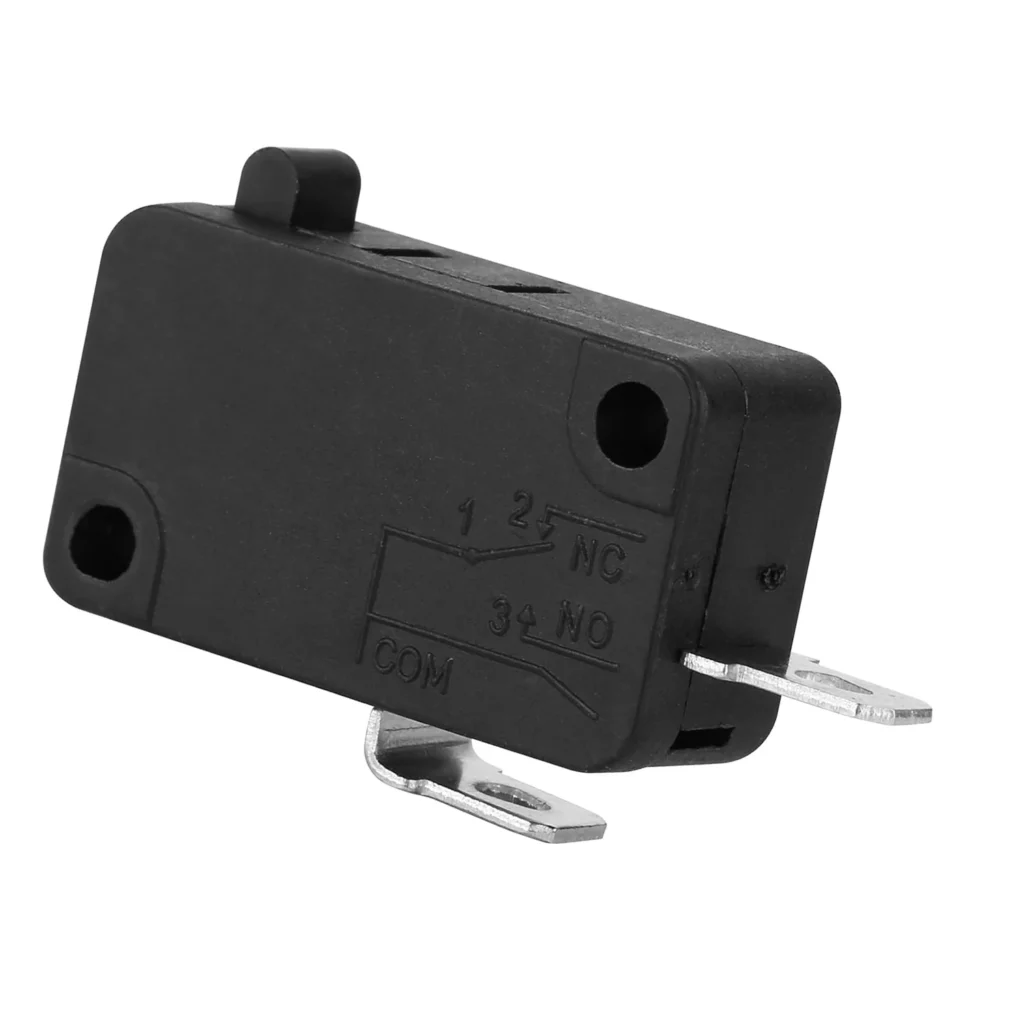

Universal Micro Switch Parts — Air Fryer, Microwave & Induction Cooker Compatibility

The KW7-0 micro switch is the silent workhorse behind your appliance's safety system. When you open the microwave door mid-cycle and it keeps running, or your air fryer won't start even though everything looks normal, this tiny component is usually the culprit. This universal switch replaces KW7-0A, KW7-1, and KW7-2 variants across multiple appliance types.

Is This the Right Part for Your Model?

This micro switch works across air fryers, microwave ovens, and induction cookers. Check your model number on the rating plate—usually inside the door frame for microwaves, on the bottom for air fryers, or on the back panel for induction cookers. The KW7-0 is a direct replacement for models from COSORI, Power XL, Whirlpool, Gourmia, and Paula Deen.

About This Replacement Part

The KW7-0 micro switch is a mechanical interlock that cuts power when safety conditions aren't met. In air fryers, it prevents the unit from operating when the basket isn't fully inserted. In microwaves, it's the primary door interlock switch—the first line of defense that stops microwave energy when the door opens. In induction cookers, it detects proper pan placement before allowing the coil to energize.

This switch uses a physical lever arm mechanism. When the door closes or basket seats properly, the lever depresses and completes the circuit. Over time, the contact points inside can arc and pit from repetitive electrical load, or the spring tension weakens, causing intermittent contact. You'll know it's failing when the appliance won't start despite being plugged in, or conversely, when safety interlocks stop working entirely.

Cross-Brand Compatibility

The beauty of the KW7-0 is its universal design. Whether you're fixing a COSORI AF601 air fryer or a Whirlpool MH7140XFQ0 microwave, the mounting holes and electrical terminals follow the same standard. The switch uses standard 0.25-inch quick-connect terminals, making it electrically compatible across brands.

Models Using This Switch

This micro switch fits air fryers from 6Qt to 7Qt capacity, countertop microwaves in the 700-1200W range, and portable induction cookers. The KW7 series has been the industry standard for small appliance safety interlocks since the early 2000s.

What Makes This Switch Fail

Heat cycles are the primary enemy. Every time the switch makes or breaks contact under load, a tiny arc forms between the contacts. After thousands of cycles, carbon buildup and contact erosion prevent reliable connection. In microwaves, the switch also endures mechanical stress from door slams. In air fryers, grease vapor can migrate into the switch housing, contaminating the contacts.

Testing Before You Order

Use a multimeter set to continuity mode. Unplug the appliance, locate the micro switch, and disconnect one wire. With the door closed or basket inserted, you should read continuity (beep or zero ohms). Open the door or remove the basket—continuity should break. If the switch stays open or closed regardless of position, it's failed.

Installation Overview

Access varies by appliance. Microwaves require removing the cabinet—usually 6-8 screws around the perimeter. Air fryers typically need the bottom panel removed. The switch itself mounts with a single screw or clip bracket, with two or three quick-connect terminals. The replacement takes 10 minutes once you have access.

Critical safety note: microwaves store lethal voltage in the high-voltage capacitor even when unplugged. Discharge it properly before working inside the cabinet. For air fryers and induction cookers, simple unplugging provides adequate safety.

Part Numbers and Variants

The KW7-0 replaces these OEM numbers: KW7-0A (slightly different lever length), KW7-1 (same electrical specs), KW7-2 (updated contact material), W10149355, W10269458, and W10727360 (Whirlpool-branded versions of the same switch).
