Samsung Dryer Drum Felt Seal Parts — Models & Compatibility

If your Samsung dryer sounds like it's grinding rocks or leaves black streaks on your clothes, you're probably dealing with a worn drum felt seal. This hub covers the DC97-07618A replacement seal — the most common drum gasket used across Samsung's electric and gas dryer lineup from 2012 onward. We're talking hundreds of models here, from basic 7.4 cu. ft. units to massive 9.5 cu. ft. mega-capacity machines.

Is This the Right Part for Your Model?

Your model number is stamped on a label inside the dryer door opening or on the back panel near the power cord. Look for codes starting with DV (electric) or DVG (gas) followed by model-specific numbers. The DC97-07618A fits the entire H5000, H7000, K6500, K7500, K8600, J8700, M7450, R5400, and N5300 series — plus dozens more. If your dryer was made between 2012 and 2024 and has a drum that rotates, there's a 90% chance this is your seal.

About This Replacement Part

The drum felt seal (also called a drum gasket or drum glide) wraps around the front of the dryer drum where it meets the bulkhead. It creates an airtight seal and provides a smooth gliding surface so the drum rotates quietly. When it wears down — usually after 8-12 years of regular use — you'll hear metal-on-metal scraping, see lint escaping from the front panel, or notice your clothes coming out marked with black rubber residue. Samsung uses this exact same part across their entire modern dryer range, which makes replacement straightforward once you've got the cabinet open. The DC97-07618A supersedes older part numbers AP4453798, PS4218879, and 3998155, so if you're cross-referencing repair videos or old service manuals, they're all the same physical component.

What Causes Drum Seals to Fail?

Heat and friction. Every load puts mechanical stress on this felt ring as 40-60 pounds of wet laundry tumbles against it. High-heat cycles accelerate wear, and overloading the drum compounds the problem by putting uneven pressure on the seal. You'll also see premature failure if the drum support rollers or glides are shot — when those wear out, the drum sits lower and grinds harder against the seal. If you're replacing this gasket, check those rollers at the same time. Swapping the seal without addressing worn rollers is like putting new tires on a car with bad alignment.

Compatible Samsung Dryer Models

This seal fits over 500 Samsung dryer models manufactured between 2012 and 2024. Here are the most common series:

This part fits 500+ additional Samsung dryer models not listed here. Verify your model number before ordering.

Installation Overview

You'll need to remove the dryer top and front panel to access the drum. Once the drum's out, the old felt seal peels off (it's usually stuck on with adhesive residue and years of lint buildup). Clean the bulkhead surface thoroughly with rubbing alcohol before pressing the new seal into place. The trickiest part is reassembling the drum back into the cabinet without pinching the seal — work slowly and check alignment before you put the front panel back on. Budget 90 minutes if it's your first time, 45 minutes if you've done it before.

Other Parts You Might Need

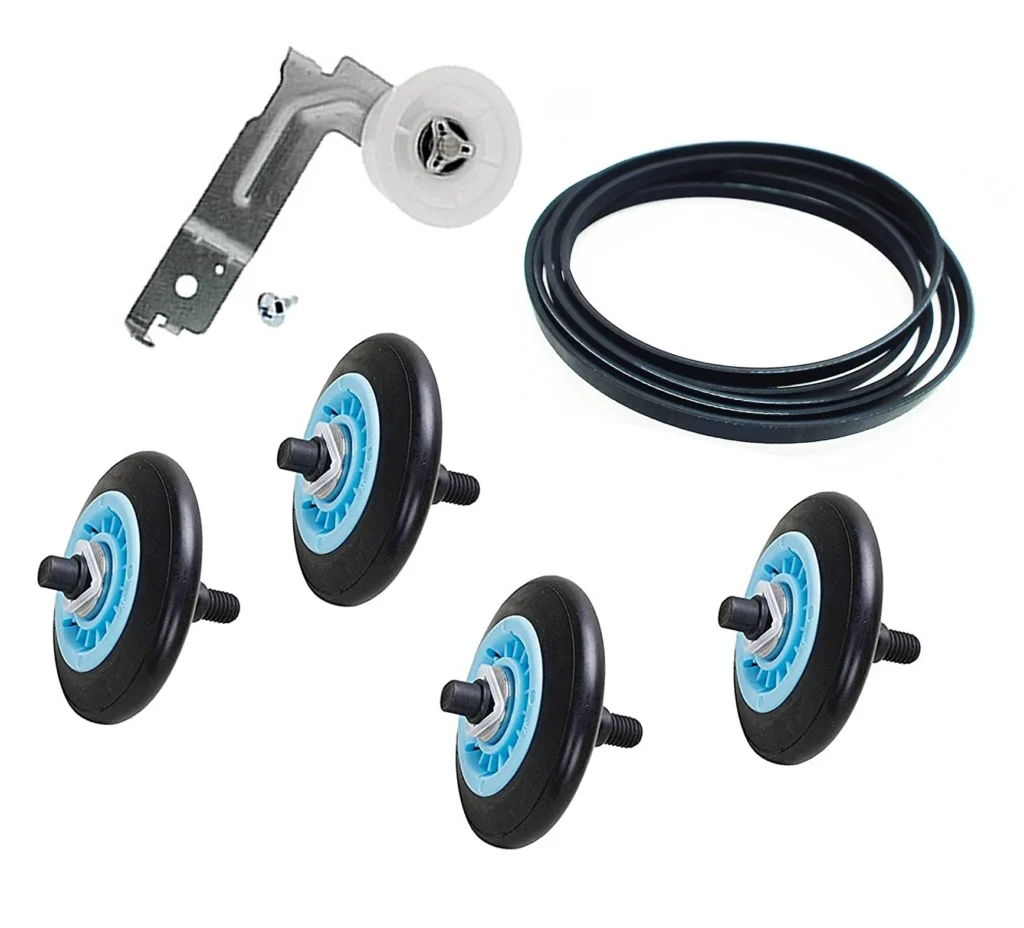

If your dryer's making noise, don't just replace the felt seal and call it done. Check the drum support rollers (they're usually the actual cause of the grinding sound), the idler pulley, and the drive belt. Samsung dryers from this era are known for roller failures around the same time the seal wears out. Replacing everything at once saves you from tearing the dryer apart again in six months.
