Whirlpool Washer Suspension Rod Kit Parts — Models & Compatibility

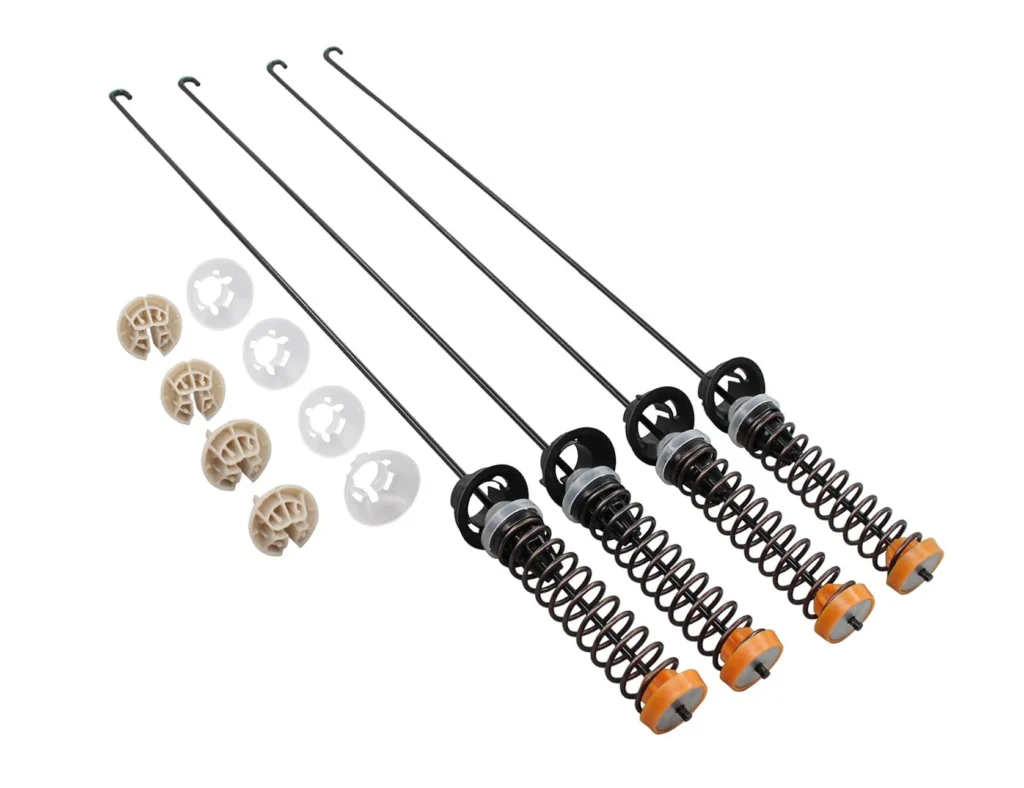

If your Whirlpool top-load washer sounds like it's trying to break through the laundry room floor, or you've noticed it doing the "walk across the room" routine during spin cycles, worn suspension rods are usually the culprit. This hub covers the W11130359 suspension rod kit — a direct replacement for Whirlpool, Maytag, and Kenmore models that use four-rod suspension systems to keep the tub stable.

Is This the Right Part for Your Model?

Check your washer's model number before ordering. You'll find it on a sticker inside the washer lid or around the door opening. This kit fits Whirlpool WTW7000, WTW7040, WTW7300, WTW7500, and WTW8000 series washers, along with their Maytag and Kenmore counterparts. If your model starts with WTW or MVW, there's a strong chance this is your kit.

About This Replacement Part

The suspension rod kit includes all four rods needed to properly support your washer's tub assembly. These rods absorb the violent movement during high-speed spin cycles — we're talking 1,200+ RPM here. Over time, regular use and overloaded wash loads cause the rubber bushings to crack and the metal rods to bend or lose tension. When they fail, you'll hear loud banging, see the drum sagging to one side, or watch your washer literally walk itself away from the wall. One DIYer mentioned they "replaced the lid and the 4 suspension rods" together, which makes sense since you've already got the cabinet open. The repair takes 30-60 minutes with basic hand tools — a socket set, adjustable wrench, and screwdrivers will handle it.

Compatible Whirlpool Washer Models

This suspension rod kit works with over 100 Whirlpool, Maytag, Kenmore, and Crosley washer models. Here are the most common ones:

• WTW7000 Series: WTW7000DW0, WTW7000DW1, WTW7000DW2, WTW7000DW3, WTW7000DW4
• WTW7040 Series: WTW7040DW0, WTW7040DW1, WTW7040DW2
• WTW7300 Series: WTW7300DC0, WTW7300DW0, WTW7300DW1, WTW7300DW2
• WTW7500 Series: WTW7500GC0, WTW7500GC2
• WTW8000 Series: WTW8000DW0, WTW8000DW1, WTW8000DW2
• WTW8500 Series: WTW8500DC0, WTW8500DC3, WTW8500DR0

This kit replaces part numbers W10594082, W11027215, AP6261901, and W10901060. If you've got any of those numbers written on a service tag or old parts receipt, you're in the right place.

Why Suspension Rods Fail

Suspension rods take a beating every single wash cycle. The main killers are overloading the tub with heavy comforters or unbalanced loads that force the system to work overtime. When one rod goes bad, it puts extra stress on the other three, creating a domino effect. You might notice excessive shaking during the spin cycle first, then it escalates to the drum appearing off-balance or sagging when you open the lid. By the time you hear metal-on-metal banging, the rods are completely shot and probably damaging other components.

Installation Overview

Replacing suspension rods isn't rocket science, but it does require removing the washer cabinet. You'll disconnect the old rods from the tub and frame, then install the new ones in the same positions — two in front, two in back. The trick is getting the tension equal on all four rods so the tub sits level. Bring a socket set, nut drivers, pliers, and an adjustable wrench. Most folks finish in under an hour, even if it's their first time inside a washer.

Specifications

• Part Number: W11130359
• Replaces: W10594082, W11027215, AP6261901, W10901060
• Kit Contents: 4 suspension rods with mounting hardware
• Compatible Brands: Whirlpool, Maytag, Kenmore, Crosley
• Repair Difficulty: Easy
• Estimated Time: 30-60 minutes
• Price: $90.99

Order Your Suspension Rod Kit

Ready to stop the shaking? Head over to the W11130359 product page to order your kit. Ships fast, and you'll have your washer running smooth again by the weekend.
