Samsung Dishwasher Heating Element Parts — Models & Compatibility

If your Samsung dishwasher isn't drying dishes properly or you're seeing the OE error code, the heating element is usually the culprit. This hub covers DD47-00008A heating element compatibility across Samsung's DW80 series — from the F600 through the latest R5060 models. We're talking about the component that heats water during the wash cycle and provides the heat boost during drying.

Is This the Right Part for Your Model?

Samsung makes this easy. Your model number is stamped on the inside edge of the dishwasher door — open it up and look along the top or side of the door frame. You'll see something like "DW80K5050US" or "DW80J3020UW." Cross-reference that against the compatibility list below. The DD47-00008A element specifically fits the DW80 series manufactured from roughly 2015 through 2020, replacing older part numbers AP5800363, 3447465, and PS8764501.

About This Replacement Part

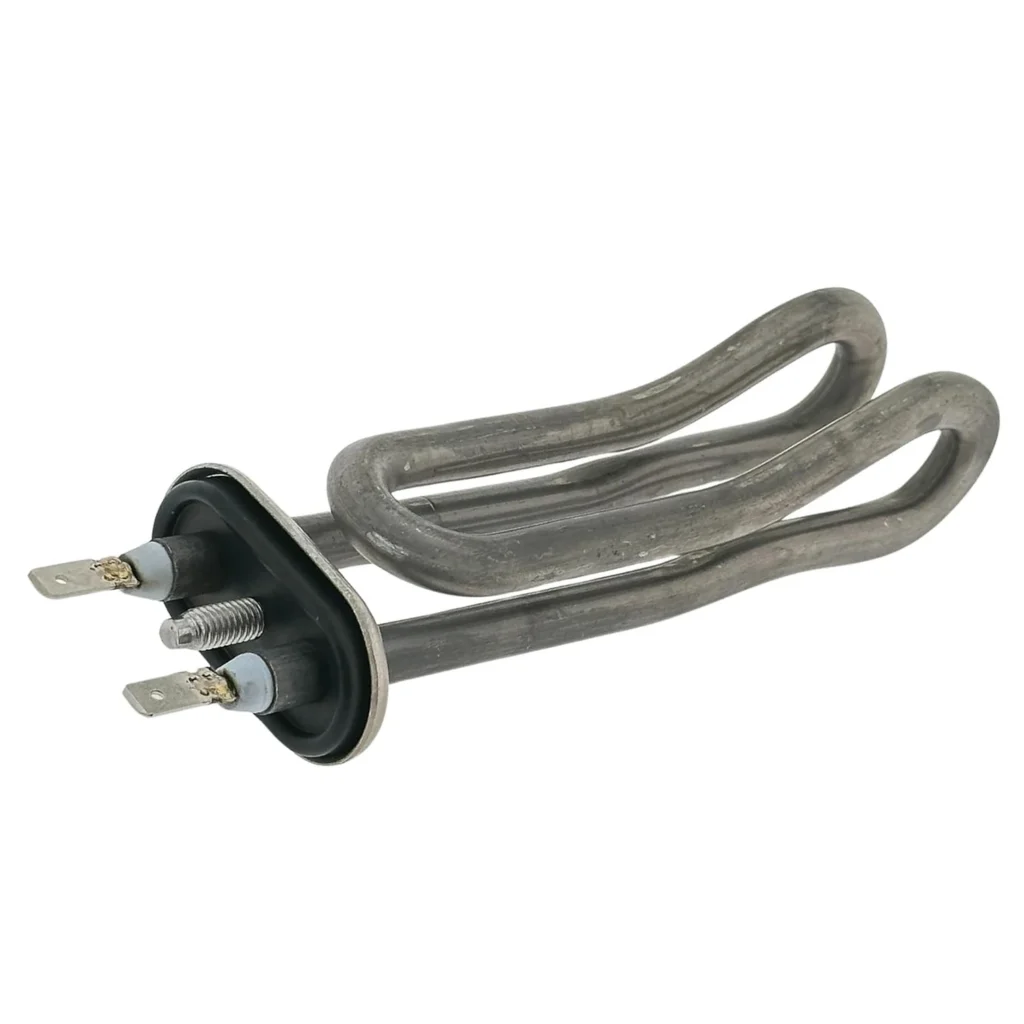

The DD47-00008A is Samsung's OEM heating element assembly — the actual metal coil that sits at the bottom of your dishwasher tub and heats water to 140-160°F during cycles. This isn't just about drying. Without a working element, your dishwasher can't sanitize properly, and detergent won't dissolve completely in cooler water. You'll notice dishes coming out with a greasy film or food particles that should've been blasted off. The element typically fails after 5-7 years of regular use, often due to mineral buildup from hard water causing hotspots on the coil. When it goes, you'll either get an error code or just lukewarm, soggy dishes every time.

Compatible Samsung Dishwasher Models

This heating element works across Samsung's most popular dishwasher lines. The compatibility spans multiple series, but they all share the same mounting bracket design and electrical connection. Here's what we've confirmed:

What You're Actually Replacing

The heating element assembly includes the coil itself plus the mounting bracket and wire connectors. It's a bottom-mounted design, which means you'll need to pull the lower spray arm and remove the sump cover to access it. Samsung uses a two-screw mounting system on these models — much simpler than older designs that required you to remove the entire tub assembly. The element draws about 1200 watts at 120V, so you'll want to kill power at the breaker before touching anything. Most people can swap this in 45 minutes once they've got the dishwasher pulled out enough to access the bottom panel.

Why This Part Fails

Heating elements don't just burn out randomly. Hard water is the main killer — calcium and lime deposits build up on the coil surface, creating insulation that makes the metal overheat in spots. Eventually, the coil develops a break in the wire. You can test continuity with a multimeter (should read 15-30 ohms), but if your dishes are cold and wet after a full cycle, the element's probably toast. Another failure mode: the plastic connector housing cracks from heat cycling over the years, causing intermittent connection issues. That'll throw error codes like OE or tE depending on your model.
