LG Dryer Heater Assembly Parts — Models & Compatibility

If your LG dryer's tumbling but producing zero heat, the heater assembly is usually the culprit. This hub covers the 5301EL1001A heater assembly — a direct replacement for over 50 LG dryer models, including the popular DLE series from 2008-2016. Whether you're dealing with a DLE5977W that won't dry towels or a DLE7177RM stuck on cool air, this is the part that restores proper heating.

Is This the Right Part for Your Model?

Check your dryer's model number before ordering. On LG dryers, you'll find it on a sticker inside the door frame or on the back panel near the power cord. Match your model exactly against our compatibility list below — this assembly fits DLE and DLEX series dryers, but won't work with older LD models. If your model number starts with DLE and was manufactured after 2007, you're likely in the right place.

About This Replacement Part

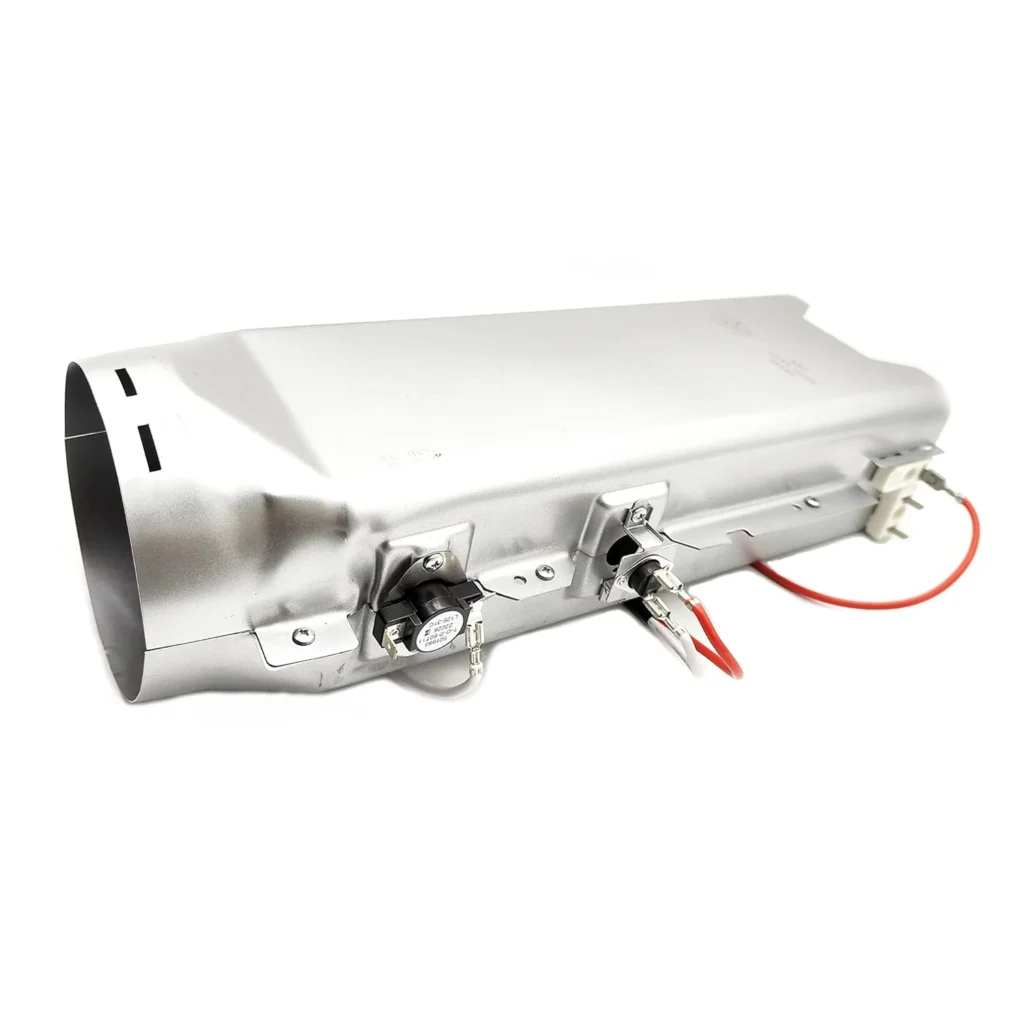

The 5301EL1001A heater assembly is the complete heating unit that generates the hot air your dryer needs to function. Normal wear and tear causes the heating element inside to break or develop gaps — often after 5-8 years of regular use. When this happens, you'll notice clothes coming out damp after a full cycle, or the dryer running endlessly without producing any warmth. This assembly includes the element, housing, and mounting brackets, so you're not piecing together multiple components. It's a moderate-difficulty repair that most homeowners can tackle with basic tools and about an hour of time.

Common Failure Pattern

LG heater assemblies typically fail suddenly rather than gradually. One day the dryer works fine, the next it's blowing room-temperature air. The heating element develops a break in the coil due to repeated expansion and contraction cycles. If you've already tested the thermal fuse and it's fine, the heater assembly is the next logical component to replace. Don't waste time troubleshooting further — a broken element doesn't repair itself.

What You'll Need for Installation

This repair requires access to the rear panel of your dryer. You'll need a Phillips screwdriver, a putty knife to release cabinet clips, and about 15 minutes to disconnect the old assembly and wire in the new one. LG made this component relatively accessible compared to other brands — no drum removal necessary. Just disconnect power, remove the rear panel, swap the connectors, and reinstall.

Compatible Model Series

This heater assembly works across LG's mid-2000s to mid-2010s electric dryer lineup. The DLE prefix covers standard electric dryers, while DLEX models are the more feature-rich versions with steam functions — both use identical heater assemblies. Kenmore-branded dryers manufactured by LG (model numbers starting with 796.8) also use this same part.
