LG Dryer Lint Filter Parts — Models & Compatibility

Your LG dryer's lint filter isn't just catching fuzz—it's preventing fire hazards and keeping your dryer running efficiently. This hub covers the 5231EL1003B lint filter assembly that fits over 100 LG and Kenmore-branded LG dryer models. If you've noticed longer drying times, excess heat, or visible lint escaping into your laundry room, you're likely dealing with a damaged or improperly sealed filter.

Is This the Right Part for Your Model?

Start by checking your dryer's model number, which you'll find on a label inside the door frame or on the back panel near the bottom. This 5231EL1003B filter fits the DLE and DLG series dryers manufactured by LG, including front-load and top-load gas and electric models. The part also replaces older numbers including 5231EL1002E, 5231EL1003A, and 5231EL1003E—if your original filter has any of these numbers, this is your replacement.

About This Replacement Part

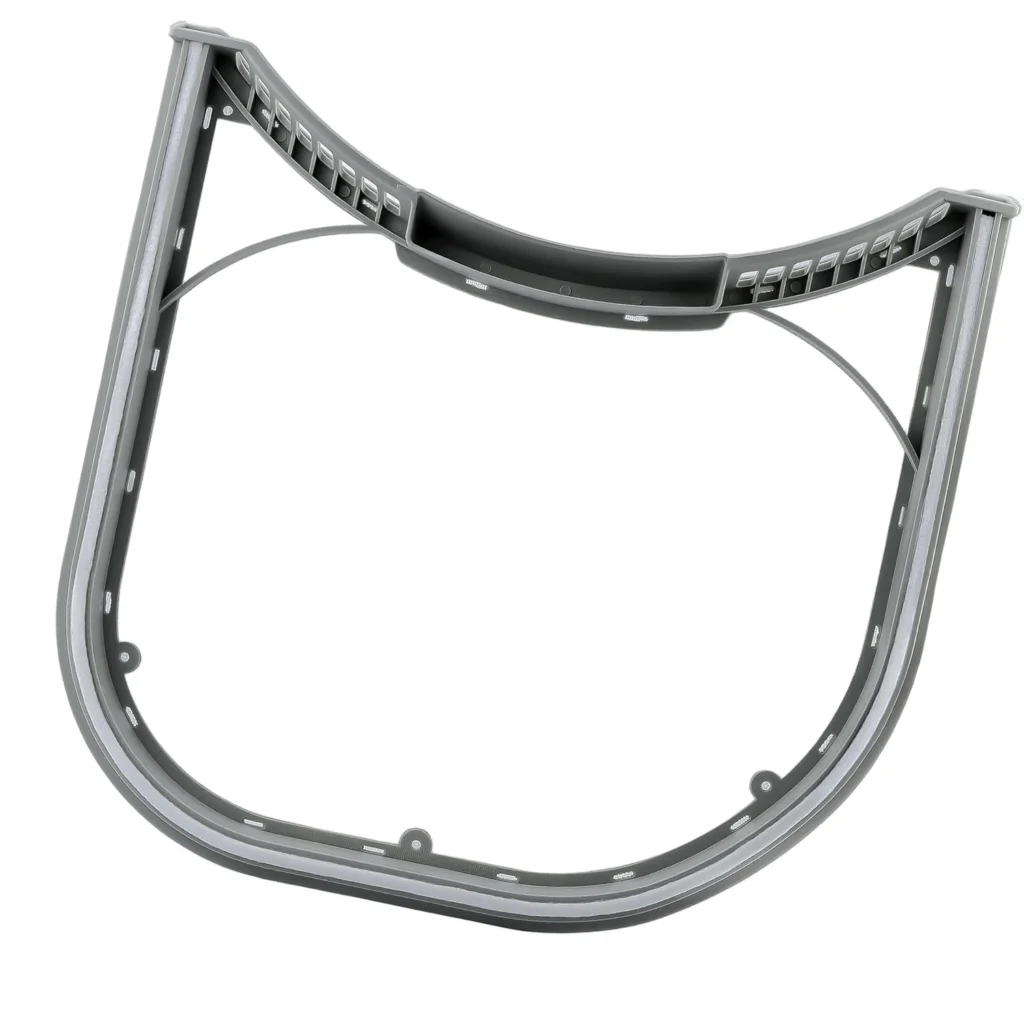

The 5231EL1003B is the complete lint filter assembly that slides into the door opening or top panel of your LG dryer. It includes the screen mesh, frame, and handle—everything you need to restore proper lint capture. A damaged filter screen or cracked frame allows lint to bypass the trap and accumulate inside the dryer cabinet, around the heating element, and in the exhaust duct. That's not just inefficient—it's dangerous. If your filter has tears, melted spots, or a warped frame that doesn't seal properly, replacement isn't optional. This part maintains airflow efficiency and prevents lint buildup that causes 92% of dryer fires according to NFPA data.

Compatible LG Dryer Models

This filter works across LG's residential dryer lineup from the past 15 years. Whether you've got a basic DLE2512W or a high-capacity DLEX8377 steam dryer, the filter design is universal across these series. Below you'll find the most common models, but this part fits many more—check your model number against the full compatibility list on the product page.

Why LG Filters Fail

Lint filters wear out from heat exposure, fabric softener residue buildup, and physical stress from daily removal and insertion. The plastic frame becomes brittle over time, especially if you've run high-heat cycles regularly. Screens develop tears from aggressive cleaning or sharp objects like underwire that make it through the wash. Some filters crack because users pull them out at an angle instead of straight up. If you've been scrubbing your filter with a stiff brush or running it through the dishwasher (don't do that), you've probably accelerated the deterioration. A filter that doesn't sit flush in its housing lets lint escape—you'll see it accumulating on clothes or floating around the laundry room.

Installation Overview

Replacing your lint filter takes about 30 seconds. Pull the old filter straight out from its housing, slide the new 5231EL1003B straight in until it seats completely, and you're done. No tools, no disassembly, no drama. Just make sure the filter housing area is clean—vacuum out any lint that's accumulated around the opening before inserting the new filter.

Keeping Your Replacement Filter Working

Clean your new filter before every load. That means every single time. Once a month, wash it with warm water and dish soap to remove fabric softener residue that blocks airflow even when the screen looks clean. Let it dry completely before reinserting it. Check the filter housing itself every few months—lint gets past even good filters occasionally, and buildup in the housing reduces efficiency. If your dryer still takes multiple cycles to dry clothes after installing a new filter, you've probably got a clogged exhaust vent that needs professional cleaning.
