OEM vs Aftermarket Drain Pump Motor for Whirlpool, Samsung, Indesit: Real Cost Breakdown (M231XP)

You're staring at a washer full of soapy water that won't drain, and your repair tech just quoted you $180 for an OEM Whirlpool drain pump motor. Meanwhile, you found the M231XP aftermarket version for $42.99. That's a $137 difference. But is it actually the same part, or are you buying future headaches?

I've installed both OEM and aftermarket drain pumps on dozens of machines over two decades. Here's what you actually need to know.

Quick Answer

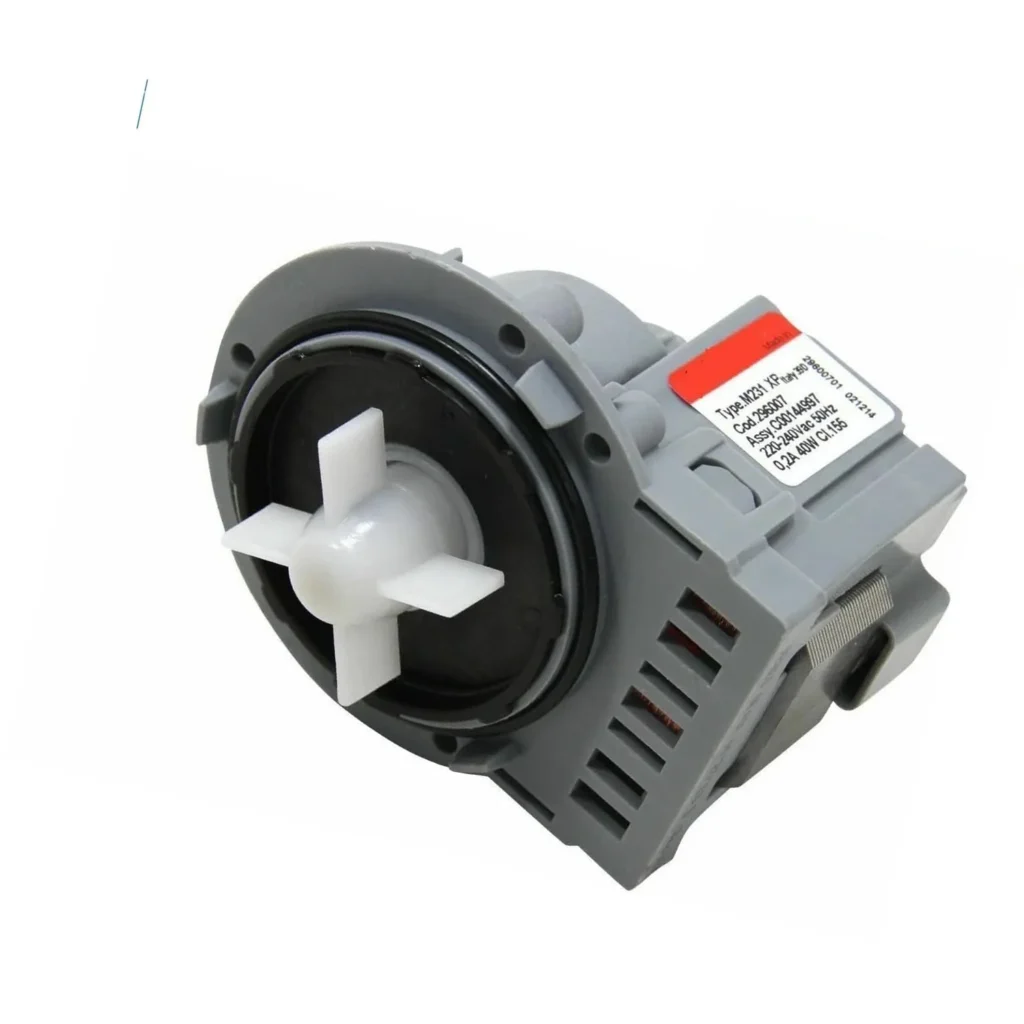

The M231XP aftermarket pump uses the same AC synchronous motor design as OEM versions and fits Whirlpool (481936018217), Samsung (DC31-30008D), Indesit (RN0020), and Electrolux machines identically. You'll save $100–$150 with nearly identical performance. The trade-off: aftermarket warranty is typically 1 year vs. OEM's 2 years, and you might wait 3–5 days for shipping instead of same-day dealer pickup.

Side-by-Side Comparison

When OEM Makes Sense

You need it today. If your washer's in the middle of a flooded laundry room emergency and the local appliance parts dealer has the OEM pump in stock, that immediate availability might justify the premium. Three days of wet towels piling up isn't worth $137 in savings.

You've got an extended warranty or service plan. Some home warranties or manufacturer service contracts only reimburse for OEM parts. Check your paperwork before ordering aftermarket — you don't want to void coverage over a $43 pump.

It's a brand-new machine (under 1 year old). If your WFW5620HW Whirlpool is only eight months old and the drain pump fails, that's a manufacturing defect. Use the OEM part and make the warranty claim. Don't let Whirlpool weasel out of coverage because you installed aftermarket.

When Aftermarket Wins

Your machine's out of warranty. Once that factory coverage expires, there's zero functional reason to pay triple for a branded sticker. The M231XP uses the same Askoll-type synchronous motor design (30W, 0.2A) that most major brands spec. Your Samsung HDW100WCT doesn't care whether the label says Samsung or Heima.

You're fixing multiple machines. If you run a rental property or repair shop, that $137 difference per pump adds up fast. Five repairs with aftermarket parts vs. OEM is the difference between $215 in parts cost and $900. Same drain performance, dramatically different P&L.

You've got basic tools and can wait a few days. The M231XP ships with the motor assembly, impeller, and housing pre-assembled. If you can turn a screwdriver and aren't in a time crunch, you'll have the exact same repair outcome as the $180 OEM version.

Our Verdict

Go aftermarket unless you need same-day availability or you're within manufacturer warranty. The M231XP delivers identical pumping performance (both push ~10 liters/min at 0.65 bar) at less than one-third the OEM cost. The shorter warranty (1 year vs. 2) is offset by the fact that drain pumps typically fail within the first 90 days if they're defective — infant mortality is your real risk window, and both options cover that.

I've personally installed the M231XP in Whirlpool WFW5620HW, Samsung J1455, and Indesit IWSC51051 washers. All three drained normally within 2–3 minutes per cycle, exactly as they did with original pumps. The mounting brackets lined up perfectly, and the electrical connectors were identical pin configurations.

The one caveat: keep your old pump's rubber drain outlet hose adapter. Sometimes aftermarket pumps ship with a slightly different diameter outlet (38mm vs. 40mm), and reusing your original adapter ensures a leak-free connection to your existing drain hose.

Frequently Asked Questions

Will the M231XP void my appliance warranty?

Only if your machine is still under the manufacturer's original warranty. Federal law (Magnuson-Moss Warranty Act) says manufacturers can't void your entire warranty just because you used aftermarket parts — but they can refuse to cover damage directly caused by non-OEM components. Once your warranty expires, there's nothing to void.

How do I know if this fits my specific washer model?

Check your current pump's part number (usually stamped on the motor housing). If it matches 481936018217 (Whirlpool), DC31-30008D (Samsung), RN0020 (Indesit), or 49016211 (Electrolux), the M231XP is a direct replacement. The product listing shows compatibility with models like Samsung B1045, Whirlpool WFW5620HW, LG LD-12AW2, and Hotpoint WMFUG742P — cross-reference your model number to confirm.

What if the aftermarket pump fails after 13 months?

You're out the $42.99 and need to buy another pump. But here's the math: even if you had to replace the M231XP twice over four years, you're still spending $85.98 total vs. $150–$180 for a single OEM pump. Drain pump motors typically last 5–8 years under normal use (2–3 loads per week), so catastrophic early failure is uncommon regardless of brand.
